Building Coils - Basics For Newbies

Discussion in 'Modders Paradise' started by Rob Fisher, 18/3/14.

  1.
    Rob Fisher

    Rob Fisher Reonaut / ECIGSSA Admin Staff Member ECIGSSA Donor VIP FINES MASTER

    Top Poster Of Month

    Country:
    South Africa
    Joined:
    3/2/14
    Posts:
    7,653
    Media:
    11
    Albums:
    1
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Winston Park, Durbs
    Hi All,

    Tomorrow I enter the world of building coils and messing around with wire and cotton wool etc... there is a ton of info on the other threads but thought it may be a good idea to start a beginners thread because a lot of the other threads are pretty technical.

    So... Questions...
    • What thickness screwdriver or drill bit should I use to wrap the wire around? I'm building for a Kayfun Lite Plus Clone RBA.
    • I assume the 28g Kanthal A-1 Wire is the right one?
    • Can I just go to the hardware store and buy one of those little blowtorches?
    • Should I try using Silica Wick as well as Cotton Wool?
    • What power setting should I set the SVD to start?
    I'm so looking forward to Vape Mail tomorrow! And just for the record this is all your fault @Matthee!

    • Agree Agree x 2
    • Like Like x 1
  2.
    johan

    johan Reo & ePipe ECIGSSA Donor

    Country:
    South Africa
    Joined:
    31/1/14
    Posts:
    5,723
    Trophy Points:
    213
    Gender:
    Male
    Location:
    pretoria
    To start I suggest the following from HWS:

    1. 2mm drill bit to use as former to wrap your coils (don't you have coil jig?)
    2. 28G Kanthal is great to start off with (10 wraps on 2mm as a start)
    3. Any blowtorch will work - even a lighter
    4. Try both, you'll find the cotton much better re flavour and wicking
    5. Power setting: start of minimum, go up until it gets nasty and then go 1 down

    Looking forward to the photos, and of coarse your comments

    • Like Like x 2
    • Agree Agree x 2
    • Informative Informative x 1
  3.
    Rob Fisher

    Rob Fisher Reonaut / ECIGSSA Admin Staff Member ECIGSSA Donor VIP FINES MASTER

    Top Poster Of Month

    Country:
    South Africa
    Joined:
    3/2/14
    Posts:
    7,653
    Media:
    11
    Albums:
    1
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Winston Park, Durbs
    Thanks Johan! No I don't have a coil jig... I made the mistake of going to sleep that night and I missed the auction end. :(

  4.
    Rob Fisher

    Rob Fisher Reonaut / ECIGSSA Admin Staff Member ECIGSSA Donor VIP FINES MASTER

    Top Poster Of Month

    Country:
    South Africa
    Joined:
    3/2/14
    Posts:
    7,653
    Media:
    11
    Albums:
    1
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Winston Park, Durbs
    Another question... Do you all undo the fill screw to add the juice? The hole looks (from videos) a bit small and that seems a tough way to fill the tank?

  5.
    johan

    johan Reo & ePipe ECIGSSA Donor

    Country:
    South Africa
    Joined:
    31/1/14
    Posts:
    5,723
    Trophy Points:
    213
    Gender:
    Male
    Location:
    pretoria
    You wont mess if you use the fill screw. Big mess if you forget to put your finger on the air vent when filling from the top! No easy with VM's bottles.

    • Agree Agree x 1
  6.
    TylerD

    TylerD Mischief. Mayhem. Soap.Vape Staff Member Moderator ECIGSSA Donor VIP PIF Boss

    Country:
    South Africa
    Joined:
    14/10/13
    Posts:
    3,356
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Johannesburg, West side.
    Rob, it is really not that hard to roll a coil. Hardest part is to keep count of the wraps. :D
    Also, I don't even own a blowtorch. 28g Kanthal is not so springy and as soon as you have it in the atty, you can pulse it and squeeze it. Repeat 3 times. If the coil heats from the centre to outside, you are ready.
    Screw on the barrel and top of the chamber and just take and try it before you put the whole thing together and fill with juice. Easy to change anything if you must.

    • Thanks Thanks x 1
  7.
    Rob Fisher

    Rob Fisher Reonaut / ECIGSSA Admin Staff Member ECIGSSA Donor VIP FINES MASTER

    Top Poster Of Month

    Country:
    South Africa
    Joined:
    3/2/14
    Posts:
    7,653
    Media:
    11
    Albums:
    1
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Winston Park, Durbs
    OK in that case I need to fill my U-Can with Menthol Ice. Thanks for that tip! ;)

  8.
    johan

    johan Reo & ePipe ECIGSSA Donor

    Country:
    South Africa
    Joined:
    31/1/14
    Posts:
    5,723
    Trophy Points:
    213
    Gender:
    Male
    Location:
    pretoria
    There you go Rob the pro's with experience like TylerD will take it from here with further assistance. One thing that helped me after the pulsing and then wicking - wet the wick with enough juice, easier to position in the Kayfun.

    • Informative Informative x 1
  9.
    Riaz

    Riaz Passion changes everything Staff Member Moderator

    Country:
    South Africa
    Joined:
    9/10/13
    Posts:
    3,253
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Cape Town
    @Rob Fisher just a word of advice, once u get this RBA built and running properly, i guarantee you you will be posting alot of stuff in the classifieds ;)

    • Agree Agree x 2
    • Like Like x 1
  10.
    TylerD

    TylerD Mischief. Mayhem. Soap.Vape Staff Member Moderator ECIGSSA Donor VIP PIF Boss

    Country:
    South Africa
    Joined:
    14/10/13
    Posts:
    3,356
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Johannesburg, West side.
    @Rob Fisher please wash the unit decently before you do a build.

  11.
    Andre

    Andre Reonaut VIP

    Country:
    South Africa
    Joined:
    6/10/13
    Posts:
    7,970
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Koringberg
    You can coil one of two ways:
    1. The traditional way - the wraps are not touching. Not for cotton as wicking material.
    2. Micro coils - the wraps are tight and touching.
    Here is a video on the traditional way:

    The micro coil way:

    Micro coiling with a jig, but worth watching even if you do not have a jig:


    Your specific questions:
    • What thickness screwdriver or drill bit should I use to wrap the wire around? I'm building for a Kayfun Lite Plus Clone RBA. The majority of vapers use a mandrel of around 1.5 mm. The usual terminology is then that your have a coil with an ID (inner diameter) of 1.5 mm.
    • I assume the 28g Kanthal A-1 Wire is the right one? The most popular gauge.
    • Can I just go to the hardware store and buy one of those little blowtorches? Yes, very handy. I use a little Dremel one.
    • Should I try using Silica Wick as well as Cotton Wool? On the Kayfun, if you go the micro coil way, I recommend start with cotton.
    • What power setting should I set the SVD to start? That depends a lot on the resistance of your coil. The higher the resistance, the more power you can apply. Very important to check the resistance of your coil before firing - for if there is a short your SVD will not measure resistance.

    Last edited: 18/3/14
  12.
    Rob Fisher

    Rob Fisher Reonaut / ECIGSSA Admin Staff Member ECIGSSA Donor VIP FINES MASTER

    Top Poster Of Month

    Country:
    South Africa
    Joined:
    3/2/14
    Posts:
    7,653
    Media:
    11
    Albums:
    1
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Winston Park, Durbs
    Thanks @TylerD! I assume Sunlight Dishwasher liquid and warm water and then rinse big time?

  13.
    TylerD

    TylerD Mischief. Mayhem. Soap.Vape Staff Member Moderator ECIGSSA Donor VIP PIF Boss

    Country:
    South Africa
    Joined:
    14/10/13
    Posts:
    3,356
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Johannesburg, West side.
    Jip thath will work great. Just rinse all the liquid of! Big time like you said!

    • Informative Informative x 1
  14.
    johan

    johan Reo & ePipe ECIGSSA Donor

    Country:
    South Africa
    Joined:
    31/1/14
    Posts:
    5,723
    Trophy Points:
    213
    Gender:
    Male
    Location:
    pretoria
    yes 100% Rob, those stuff are still yucky inside with machine oil and chinese pubes.

    • Funny Funny x 3
    • Like Like x 1
  15.
    Andre

    Andre Reonaut VIP

    Country:
    South Africa
    Joined:
    6/10/13
    Posts:
    7,970
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Koringberg
    A question new coilers ask a lot - how many wraps to get to my desired resistance? Attached a document to give you some idea.


    Attached Files:

    • Like Like x 1
  16.
    Rob Fisher

    Rob Fisher Reonaut / ECIGSSA Admin Staff Member ECIGSSA Donor VIP FINES MASTER

    Top Poster Of Month

    Country:
    South Africa
    Joined:
    3/2/14
    Posts:
    7,653
    Media:
    11
    Albums:
    1
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Winston Park, Durbs

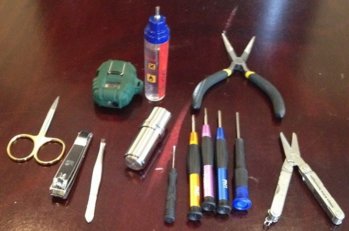

    Thanks @Matthee! I am assembling the tools as we speak! Whoops... no Ohm meter! I need one of them! Yay! More stuff to buy!

  17.
    Rob Fisher

    Rob Fisher Reonaut / ECIGSSA Admin Staff Member ECIGSSA Donor VIP FINES MASTER

    Top Poster Of Month

    Country:
    South Africa
    Joined:
    3/2/14
    Posts:
    7,653
    Media:
    11
    Albums:
    1
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Winston Park, Durbs
    Hahahaha! That really tickled my fancy and I couldn't type for about a minute! :eek::D:D

  18.
    Rob Fisher

    Rob Fisher Reonaut / ECIGSSA Admin Staff Member ECIGSSA Donor VIP FINES MASTER

    Top Poster Of Month

    Country:
    South Africa
    Joined:
    3/2/14
    Posts:
    7,653
    Media:
    11
    Albums:
    1
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Winston Park, Durbs
    Thanks for the chart! And what resistance should I be looking for @Matthee?

  19.
    johan

    johan Reo & ePipe ECIGSSA Donor

    Country:
    South Africa
    Joined:
    31/1/14
    Posts:
    5,723
    Trophy Points:
    213
    Gender:
    Male
    Location:
    pretoria
    Apologies for that expression due to a lack of a better word or acrynem. But seeing that members are 18+ I thought I will take a chance just to make sure you wash them properly.

    • Funny Funny x 1
  20.
    Rex_Bael

    Rex_Bael REOnaught

    Country:
    South Africa
    Joined:
    27/2/14
    Posts:
    368
    Trophy Points:
    63
    Gender:
    Male
    Location:
    Johannesburg
    I'll be watching this thread closely, will be getting my Kayfun on payday :D

    • Like Like x 1
  21.
    BhavZ

    BhavZ Wake and Vape

    Country:
    South Africa
    Joined:
    29/1/14
    Posts:
    2,419
    Trophy Points:
    113
    Gender:
    Male
    Location:
    CPT
    If you still have your svd you can use that to check the ohms of your coil and to see if it is shorting or not.

    I'm not saying don'y buy an ohm meter, just a suggestion if you wanna get rebuilding asap while your wait on your ohm meter.

    • Agree Agree x 1
  22.
    Rob Fisher

    Rob Fisher Reonaut / ECIGSSA Admin Staff Member ECIGSSA Donor VIP FINES MASTER

    Top Poster Of Month

    Country:
    South Africa
    Joined:
    3/2/14
    Posts:
    7,653
    Media:
    11
    Albums:
    1
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Winston Park, Durbs
    OK now I'm getting excited... need to visit the hardware store first thing to get a few more "tools" for my Vaping Tool Box!


    • Like Like x 1
  23.
    TylerD

    TylerD Mischief. Mayhem. Soap.Vape Staff Member Moderator ECIGSSA Donor VIP PIF Boss

    Country:
    South Africa
    Joined:
    14/10/13
    Posts:
    3,356
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Johannesburg, West side.
    You can actually use that small black screwdriver for coils. Looks perfect.

    • Informative Informative x 1
  24.
    Andre

    Andre Reonaut VIP

    Country:
    South Africa
    Joined:
    6/10/13
    Posts:
    7,970
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Koringberg
    My recommendation would be to start around 1.3 ohms.

    • Agree Agree x 1
    • Informative Informative x 1
  25.
    TylerD

    TylerD Mischief. Mayhem. Soap.Vape Staff Member Moderator ECIGSSA Donor VIP PIF Boss

    Country:
    South Africa
    Joined:
    14/10/13
    Posts:
    3,356
    Trophy Points:
    213
    Gender:
    Male
    Location:
    Johannesburg, West side.
    Damn but I'm agreeing alot with @Matthee ! :D

    • Like Like x 1
