I need a replacement 510 pin for my Siren 2. Any suggestions?


Sent from my MAR-LX1M using Tapatalk

I need a replacement 510 pin for my Siren 2. Any suggestions?

Sent from my MAR-LX1M using Tapatalk

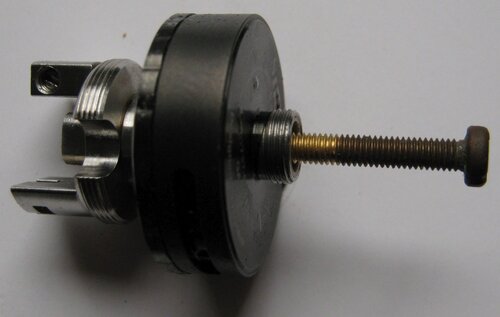

Looks like DIY might be the only way, a brass M3 machine screw fits, but the head is going to need filing down because it doesnt fit inside the peek insulator.

You're also going to need to compensate for the "screw in a screw" that the original used.

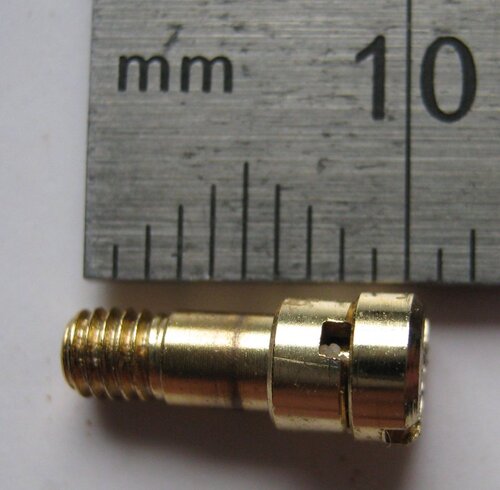

Overall length is 10mm and the depth of the combined head is 4mm.

Thank you for the information. Yes, im gonna have to diy it

Sent from my MAR-LX1M using Tapatalk

Hi @blujeenz and @David.Fisher

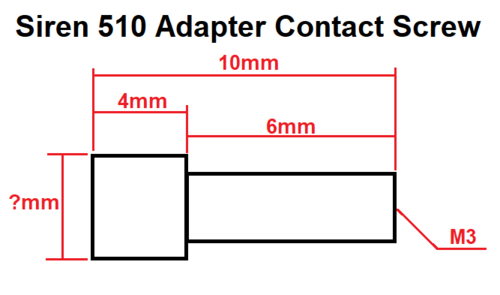

Could you please confirm / correct the measurements below, and provide the measurement of the screw dead diameter for a Siren 510 Adapter Contact Screw, as I'll be making up one for a forum member without access to the RTA.

Many thanks in advance :)


Hi @blujeenz and @David.Fisher

Could you please confirm / correct the measurements below, and provide the measurement of the screw dead diameter for a Siren 510 Adapter Contact Screw, as I'll be making up one for a forum member without access to the RTA.

Many thanks in advance :)

View attachment 248467

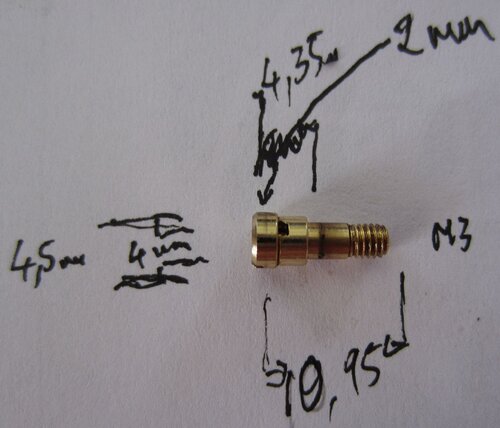

Siren V2 mine is 10.95 long.
Couldnt see if the peek has a step inside, but OD of the top screw is 4.5mm and what it screws into is 4mm od.
