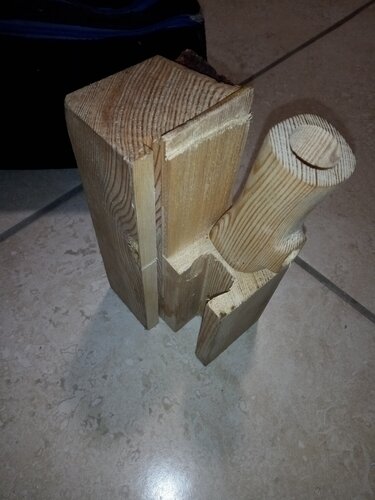

I have been playing around with this idea for a while and reading through the other pipe threads I the spark just ignited and I challenged myself to build this mod.IMG_20191228_184730.jpg IMG_20191229_012931.jpg 15777311862604614534930292828927.jpg

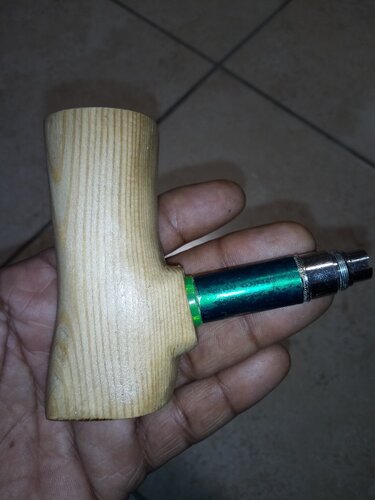

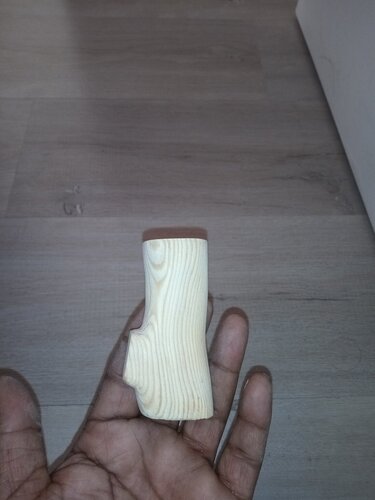

This is what I came up with being limited to hand tools.
I also didn't do any wiring yet. What I do know is the battery holder might be a problem and I don't have a cartomiser but the MTL RTA should also work except for what I would call overhang and I don't have a beauty ring...

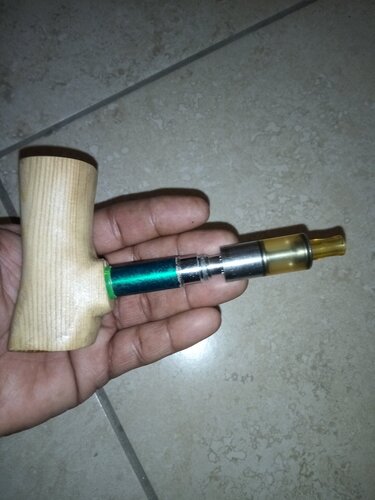

I might even shorten the green tube to have the button closer to the pipe itself for ease of use as well as stripping the green.(trying to clean it stripped some of the paint)
This is a work in process and I will update accordingly.
Thanks for watching.

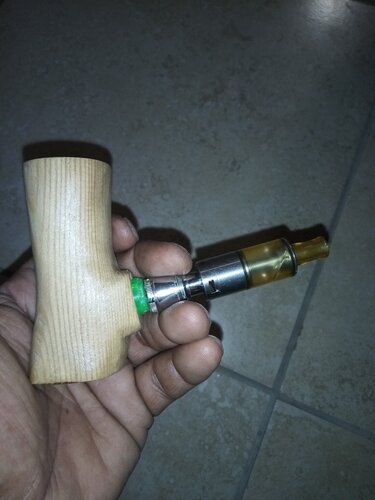

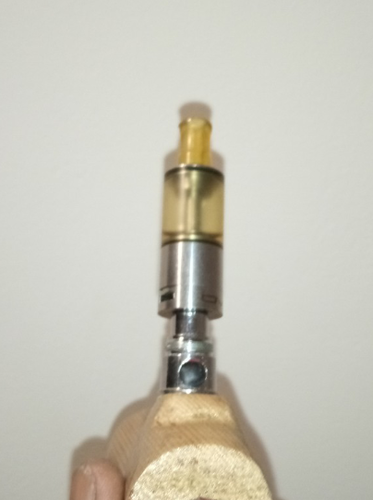

1577732151557474682759574244338.jpg with the atty it would look better closer but with the cartomiser I think the green tube extention would be a better fit.

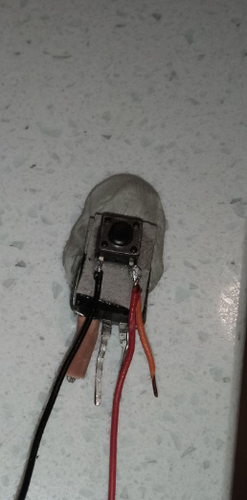

The electronics. I went mech,MOSFET with tactile switch.Screenshot_20200102-054805~2.png
Fitted the switch at the bottom so I could use it with both hands

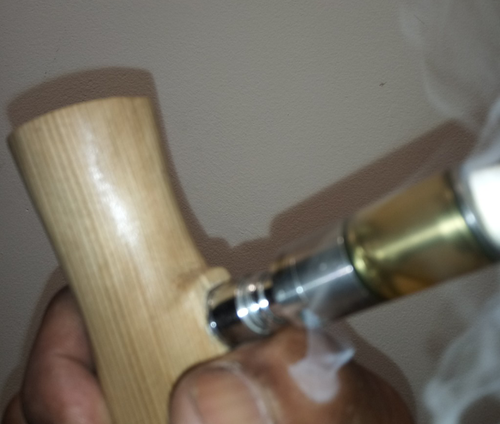

It Vapes.Screenshot_20200102-054658~2.png

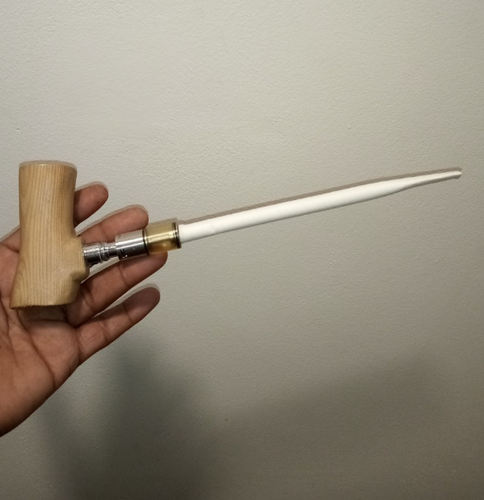

And how it looks.
I still need to make a stem this one is just for illustration purposes.
Thanks for viewing. I will still post pics of changes I make.

Last edited:
Please tell me more about the MOSFET and button.
HI brother. It was. Some time ago like @blujeenz said, but it's a IRLB 3034 transistor I thi k a 15kohm resistor with a normal tactical switch. Found a schematic and wired it accordingly. It wasn't that hard and reasonably easy to solder.
