Yihi SXmini G Class v.2 Reviewed by SessionDrummer

SessionDrummer

The SteamCrave Guy
LV
0

Joined
11/4/22
Posts
76
Awards
3
Location
US
1 Lede.png


Thanks out to @David_SXmini for sending this G Class v.2 out for review along with the previously reviewed SL Class v.2. I knew the SL was a slimmed down version, so I was SUPER excited to see what the G Class had in store for me. I believe the G Class was first introduced in 2016, so I think this updated version 2, was long in the making.

This G Class has a LOT of features, so I've tried to trim this review down as best I could, to give you guys an overview, with a lot of details, but without going TOO far into the weeds.


G Class v.2 Specs:

Chipset: SX750
Battery: 2 x 18650
Size: 94 * 47.7 * 34.3mm
510 Diameter: 30mm
0.96" TFT Display
Coil Resistance: 0.05-3.0 ohm
Temp Range: 100℃-300 ℃ / 212℉-572℉
Material: Zinc alloy, Aluminum & ABS battery Panels
Weight: 150g
Charging rate: 5V/2A
Power Range: 10-200W
Output Voltage: 0.7-6V
Standby Current:<20μA
Temp Ω Read precision: 0.0001Ω


G Class v.2 Features:

WiFi - OTA Upgrades, Wallpaper and themes, language packs, and more

Waterproof Chipset - So much more durable with that much-appreciated coating
4th Generation Temp Control - with Ohm read accuracy of 0.0001 ohm
Two temp modulation to choose from, and easy, much easier to set up
Smart Boost - the world's most intelligent preheat system. to put it in short: Preheat only when the coil needs it. period.
7 Curves presets, and very user-friendly adjusting DIY curves
Daily puff counter that auto resets according to your schedule
Quiescent Current - <20uA
2 CPU - UI Dedicated + Vaping dedicated CPU
Battery Overload Notification - based on your CDR!

Adjustable cutoff time

What's Included:


1 x YiHi SXmini G Class V2 Mod
1 x USB Type-C cable
1 x User Manual
1 x Warranty Card


Before we dive into this masterpiece, I highlighted four features/specs above that REALLY caught my eye.
Temp Control with 0.0001 ohm accuracy, 2 dedicated CPU's, WIFI ready, and the ability to set a Battery Overload Notification based on your CDR.
WOW, you can ALREADY tell that this one, means business.

The packaging was almost identical to the SL Class ...
2 Box Shot.jpg


The SXmini Team also decided to encase the entire mod in wrap, JUST to make sure it arrived to me (and you) they way they intended it to ...
2a Wrapped.jpg


With that frustration free packaging out of the way ...
3 Box Open.jpg


A USB-C charging cable, and documentation was included ....
4 Extras.jpg



Now, unlike the SL Class, the G Class included a QR code to download the manual for this one, and that was probably a GOOD idea, as it might have been a bit big for the box. Warranty card, and battery safety guide were in there too ....
5 Paperwork.jpg

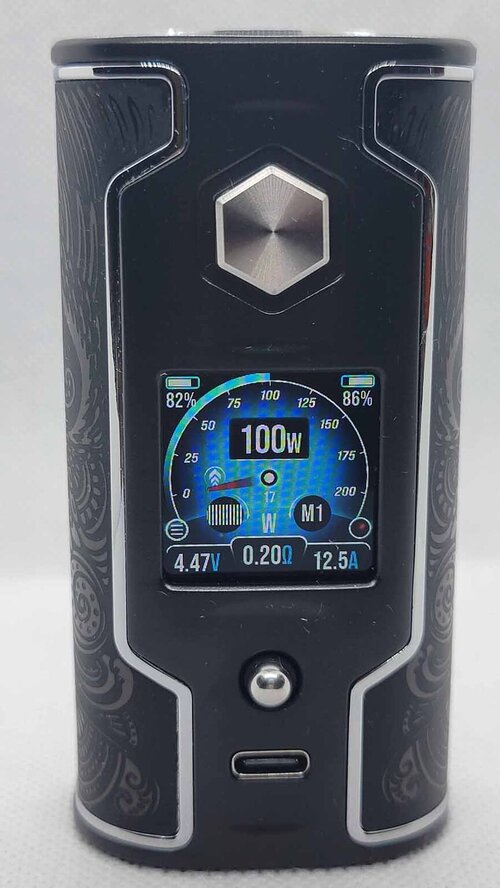

Realizing that I took WELL over 200 photos of this one, I'll try to hold BACK. On the front, we've got the expected fire button, 5-way joystick, and USB-C charging port, along with a gorgeous 0.96" TFT Display.
6 Front.jpg


A matte finish on the rear, with clean chrome trimming, and the SXmini logo (which CAN be adjusted, or turned off if needed)....
7 Back.jpg


Stunning (IMO) side panels ......
8 Side.jpg



A generous 30mm top plate that was centered, textured (yeah, they thought of that too), and with a nicely sprung 510 connection...
9 Top.jpg


Rock solid bottom plate, BUT, no battery lid ??
10 Bottom.jpg


Looking at the back side, you can barely see the two small indents ....
11 Side Tabs.jpg


Which revealed two side battery lids ....
12 Side Open.jpg


The metal lids were padded, and held in place by two VERY strong magnets ....
13 Side Open 2.jpg


Each battery compartment was polarity marked, with a rip cord, and nicely snug spring loaded posts ....
14 Side Polarity.jpg


Perfectly snug without any movement, and centered .....
15 Batteries Inserted.jpg


David also included two extra ABS side panels, which were mirror images of the stock metal ones, only lighter ...
16 Side Panel ABS.jpg


The backs of the ABS panels were not padded, but were clearly designed to hug the batteries ...
17 Side Panel ABS Back.jpg

The side panels were TOO gorgeous to NOT get a better look at them ....
18 Side Panel ABS Closeup.jpg


Comparing the stock metal (upper right), and extra ABS (lower left) panels ...
19 Side Panel Comparison.jpg


The magnets were soo strong, that I couldn't set the side panel much closer than this without them sucking the lids closed ....
20 Battery Lid.jpg


Welcome to the G2, errrr G Class V2 that is ......
21 Power Up.jpg


I specifically wanted to test out the WIFI connectivity, and update the unit for this review. This was done by turning ON the WIFI in the G Class, which enabled an AP WIFI Hotspot, connected my cell phone TO the hotspot, using the password "12345678".
22 Manual WIFI 1.png


After connected, the G Class presented a QR code, outlined in yellow. After scanning, it opened a browser window, which allowed selection of my WIFI network FOR the G Class to connect to the internet ....
23 Manual WIFI 2.png

After entering my WIFI network password, and connecting the G Class to the internet, it produced a QR code outlined in GREEN. At this point, I disconnected my phone from the G Class's AP WIFI Hotspot, reconnected to my WIFI network, and clicked the link .....
24 Manual WIFI 3.png


Which connected to the online SX-Panel !!!!!
25 Mobile SX-Panel.jpg


Now you may or may not want to initially upgrade your unit before testing, but I DID, JUST for you guys, and well, for this review. :slight_smile: I chose to update ALL ....
26 Mobile Updates 1.jpg


This included (2) WIFI updates, Firmware, and Theme updates ....
27 Mobile Updates 2.jpg


Everything was updated to v. 1.50.....
28 Mobile Updates 3.jpg


Attachments

  • 28 Mobile SX-Panel Settings.jpg
    28 Mobile SX-Panel Settings.jpg
    59.7 KB · Views: 8
Last edited:

SessionDrummer

The SteamCrave Guy
LV
0

Joined
11/4/22
Posts
76
Awards
3
Location
US
What CAN'T you do over the SX-Panel ?? Nothing, because

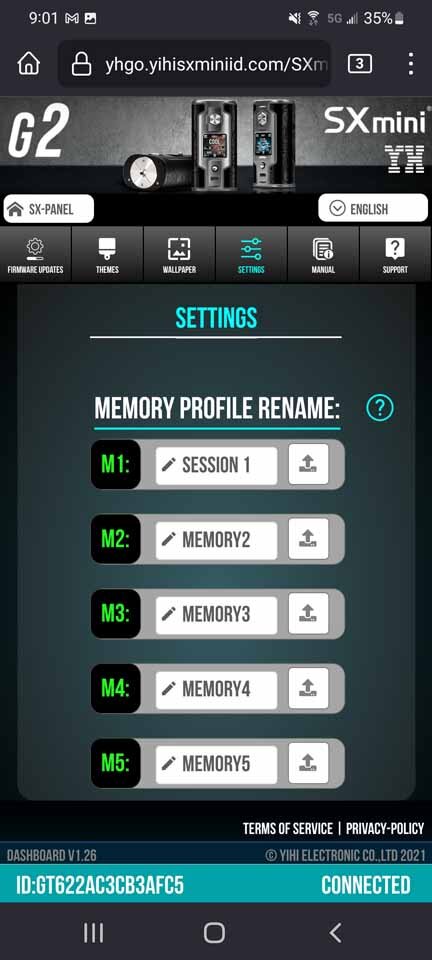

28 Mobile SX-Panel Settings.jpg

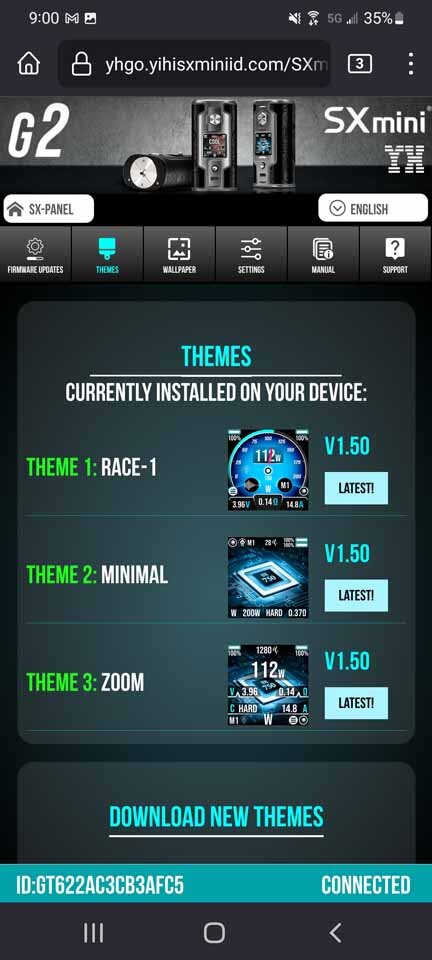

29 Mobile SX-Panel Themes.jpg

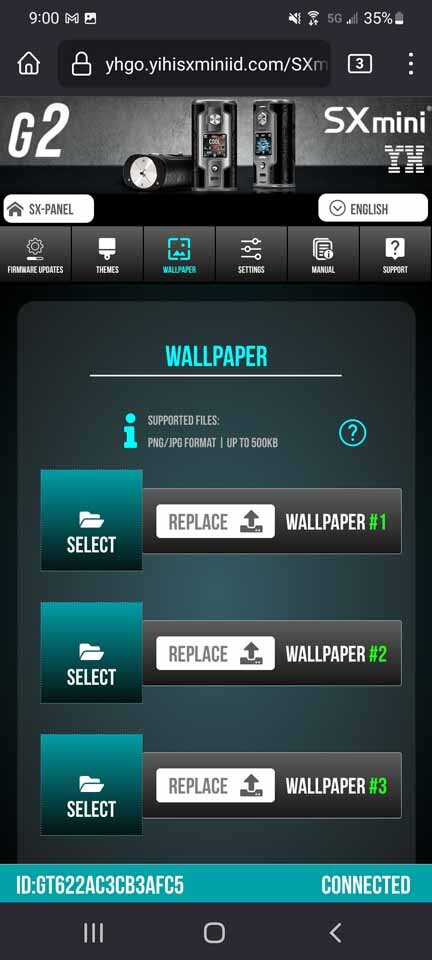

30 Mobile SX-Panel Wallpaper.jpg

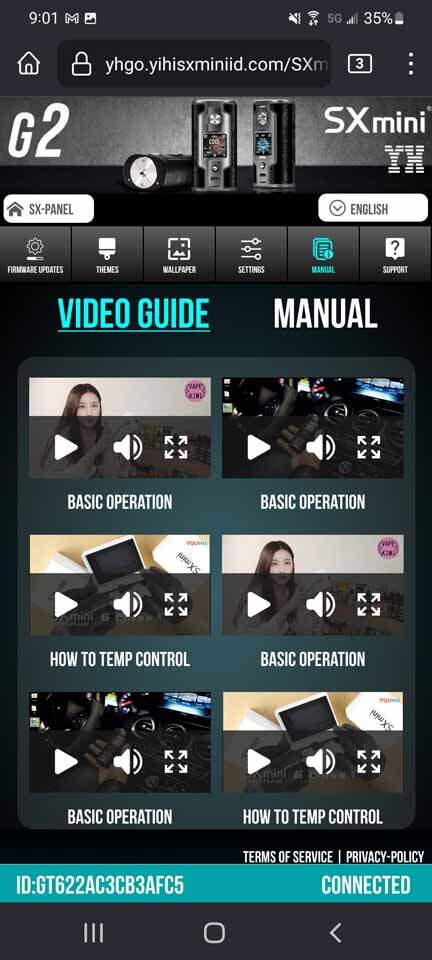

31 Mobile SX-Panel Manuals.jpg

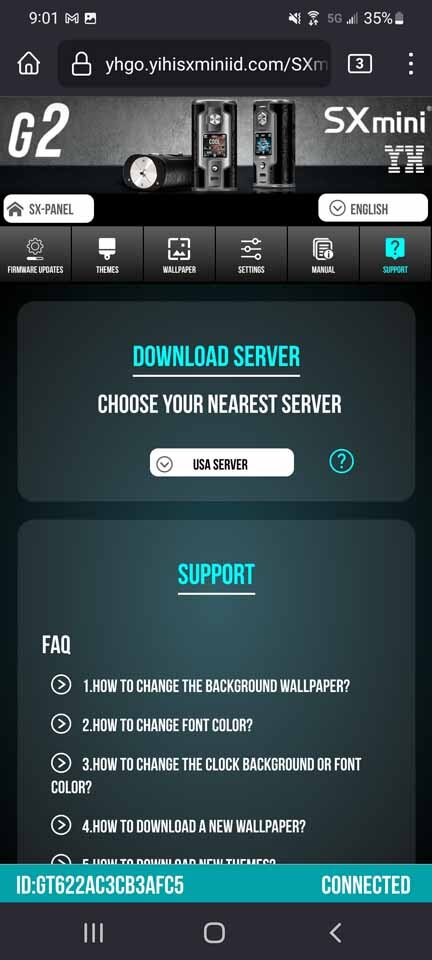

32 Mobile SX-Panel Support.jpg

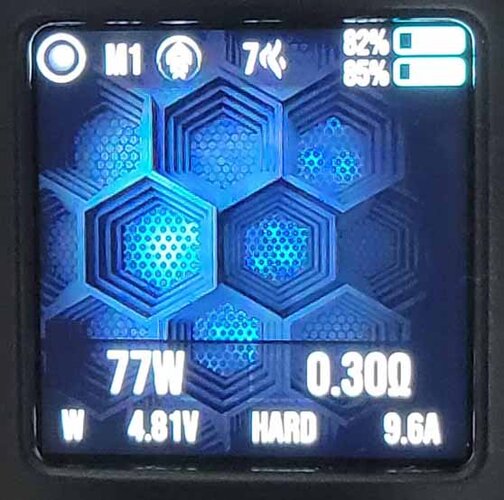

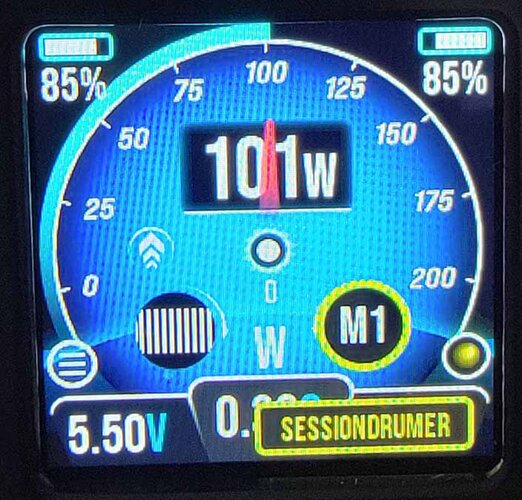

Post updates, looked great, no smoke .........
34 Main Screen.jpg

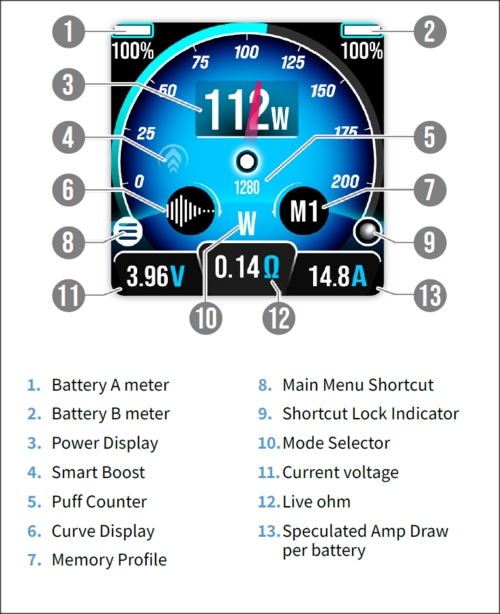

Onto the Main Display Information......
35 Manual Main Screen.png


The navigation, commands, and usage, were fairly simple, ONCE you understood, and I'm going to break it down for you, EASY style.

Clickity Clicks:

3 clicks **Fire Button** -- Locks / Unlocks Unit.
5 clicks **Fire Button** -- Main Menu / Power up.
3 clicks **Joystick** -- Locks / Unlocks joystick/quick commands (Mod will still fire).

Joystick Shortcuts:

Press and Hold

Hold Up/Down -- Adjusts Wattage, Voltage, or Temp.
Hold Right – Scrolls Available Font Colors.
Hold Left – Rotates through available Background Images (Theme Dependent).

Press Joystick, then scroll

Wattage / Temp / Voltage (mode dependent)
Memory settings
Curves
Mode – Wattage, Voltage, SS316, SS430, Ni200, Titan (Titanium), TCR and Bypass
Main Menu

The above shortcuts are very easy once you use them a few times, and become second nature. If you are more of a "Main Menu" or "Icon" based user (like I am), then 5 clicks on the fire button gets you in .....
![37 Manual Icons|392x500](upload://6m6D4QPVIv0iDac6GLty7zydwIN.png)

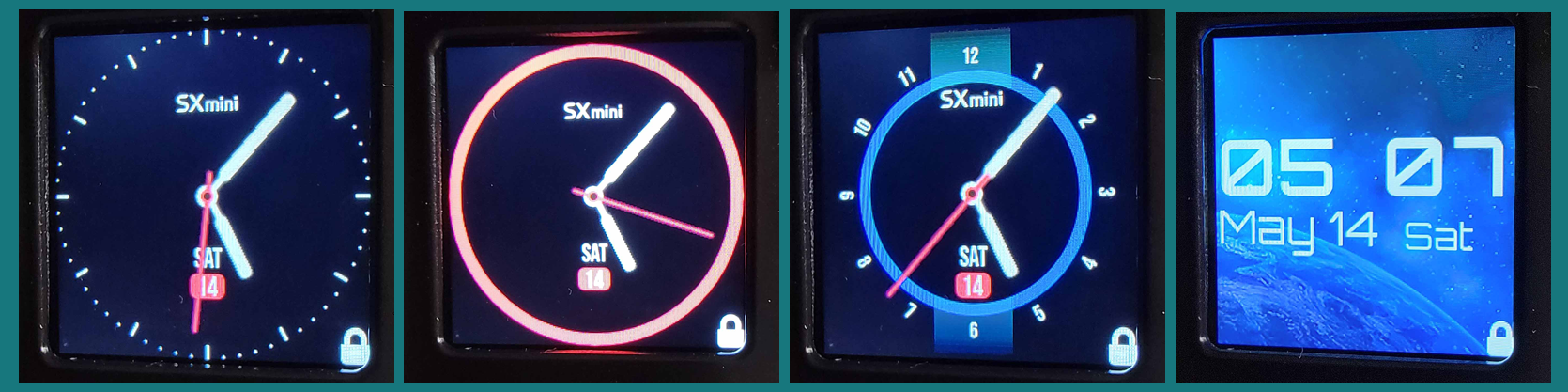

Clock:

If you lock the mod (3 clicks fire button), or it times out, you are greeted by the clock, which is ALSO selectable. When the clock is displayed, holding left on the joystick, will scroll all of the clock options. The Digital Clock has adjustable backgrounds (hold down on joystick), and font colors (hold right on joystick).
43 Clocks.png


Logo:

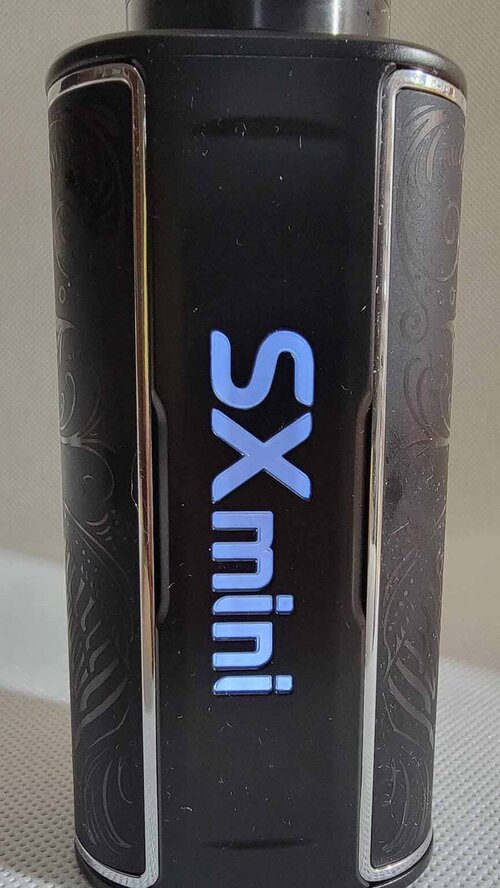

The LED Logo actually didn't look as bad as I thought, and actually grew on me. Not only could it be dimmed or turned off, but could also be set to dim and restore per pre-set times.
43a Logo.jpg

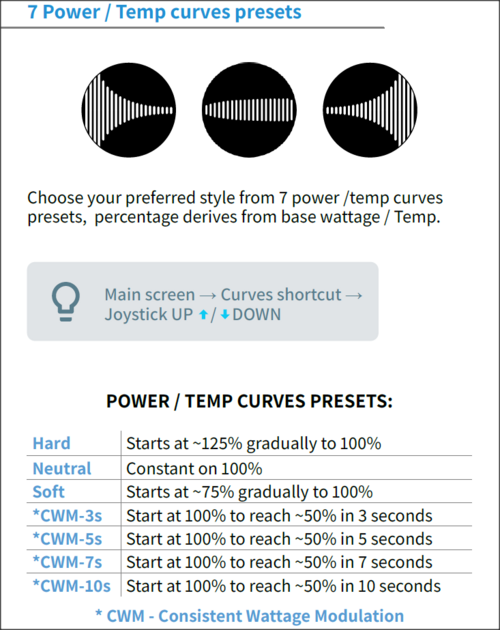

Pre-set Temp / Power Curves ......
44 Manual Power Curves.png

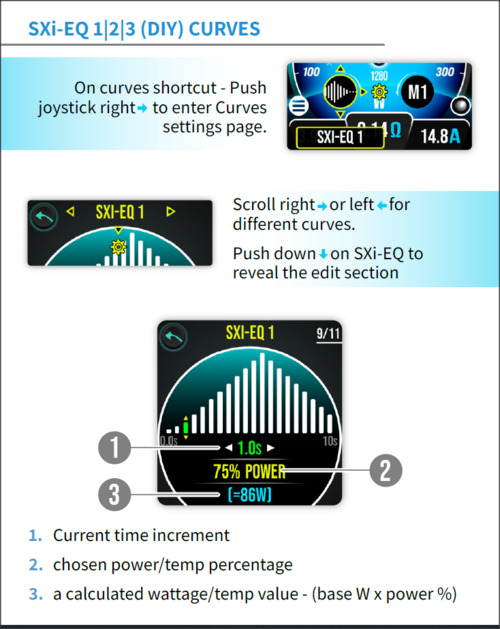

User Defined Temp / Power Curves .....
45 Manual User Curves.png

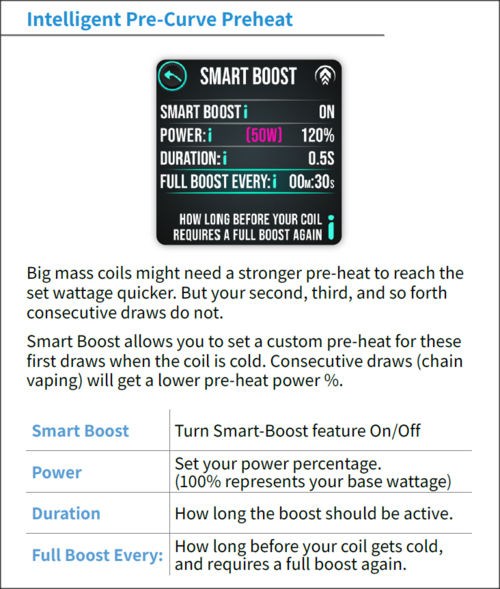

Smart Boost .....
46 Manual Smart Boost.png

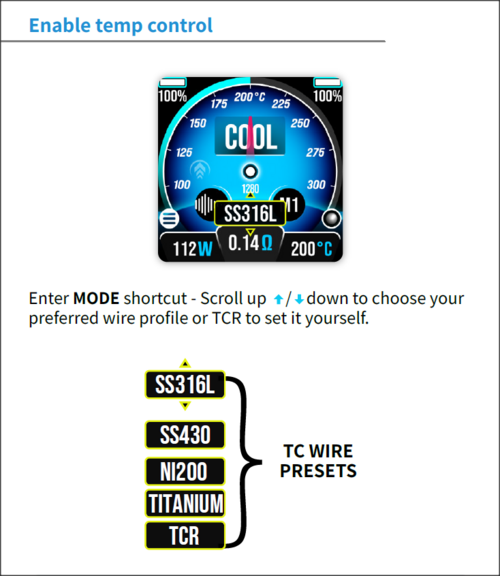

And FINALLY, ...... TEMP CONTROL !!!!!
47 Manual TC.png

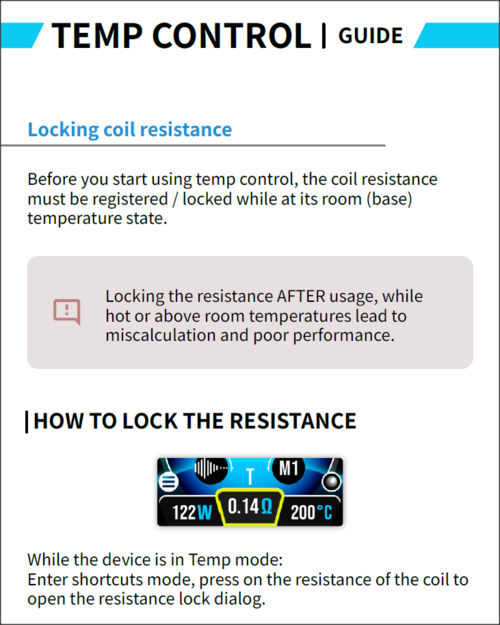

Just like on the SL Class, you need to lock in your resistance, and you also can enter your room temp .....
48 Manual Coil Lock 1.png

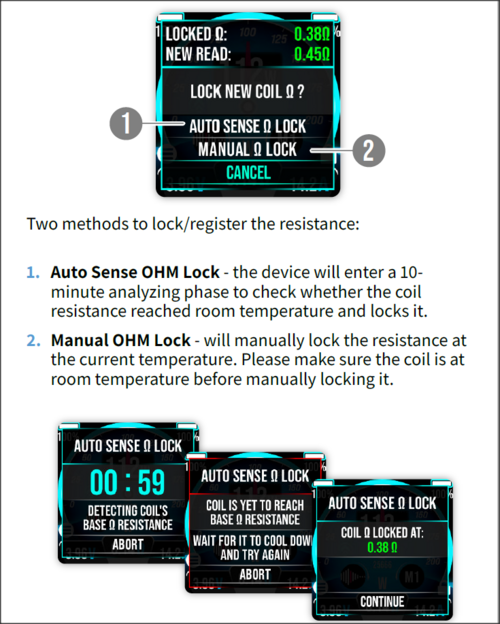

Auto (if you're coil is cooling down), Manual if it is already cool. Although Auto DOES start a 10 minute countdown clock, I waited less than a minute, and advanced. Really only needed for hot or warm coils as they are cooling down, to give you the BEST TC experience ....
49 Manual Coil Lock 2.png

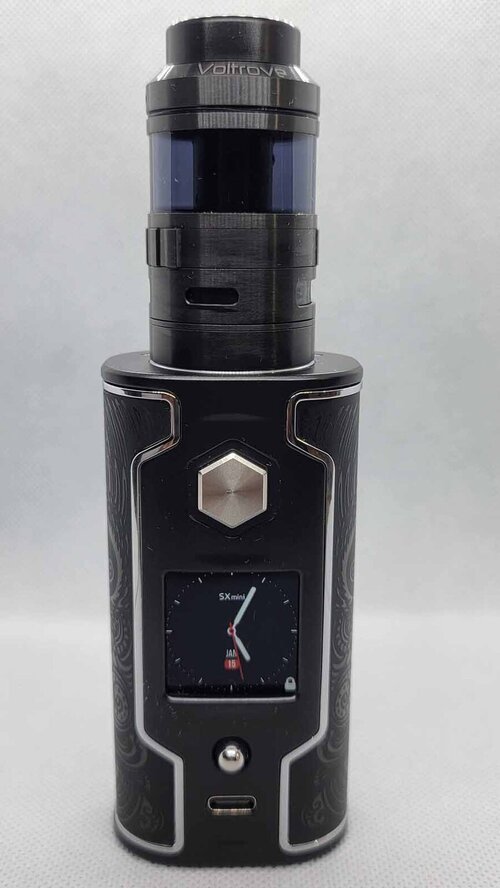

I decided to load up the Voltrove 30 v.2 LE RTA for the duration of these tests ....
50 Final.jpg


Testing / Usage:


I know, I know, FINALLY hehe. Wow, talk about OPTIONS. I think the G Class v.2 has proven to be the MOST customizable mod I have ever tested. Everything from the etched top plate, down to the slickly finished side panels just showed the attention to detail that was commonplace with this mod. Snug fitting batteries, and side panels, left it dead quiet. Both the fire button and joystick were rattle free, and about perfectly tactile. Throughout my tests, which were mostly Wattage, Voltage and TC, everything worked flawlessly. The curves, and Smart Boost worked perfectly, and made quite a difference. I will admit to being SHOCKED when I saw a 10 minute countdown clock when reading/locking in new coils, BUT, as long as they were cool, you could skip through with no issue.

The mod looked, felt, and worked like a top shelf mod (as it should), and I had close to ZERO issues, BUT, I found ONE, and it took a while to figure it out, but hey, you guys are WORTH IT. During the WIFI setup I tried to connect it to my personal networks which all had lengthy passwords with special symbols, and the mod would not connect. After a bit of fiddling, I setup a Guest Network with a simple numeric password, and it hooked RIGHT UP. SO, be advised, it appears to not like complex, mixed WIFI passwords. Once connected however, it sped right along over the 2.4 radio and pulled all the updates quickly without issue. The SX-Panel (i.e. Web Interface) was VERY slick, polished, and provided you EVERYTHING you would ever need, from support, to settings on the mod.

Pros:

* First rate fit and finish
* Felt very good in the hand
* Super sharp display
* Stunning side panels
* Beyond completely customizable
* Fast Firing, even with more complex coils
* Dual CPU's
* Hyper accurate Ω Read precision: 0.0001Ω
* USB-C
* WIFI Connected (See Cons)
* Very large top plate supports larger tanks
* Ability to define Battery Overload Warning based on CDR.

Cons:
* WIFI connection issues with complex, multi-type WIFI passwords
* Only 18650 batteries
* It ain't free

Conclusion:

Wow, WHERE to begin ?? Yes, if you've got the cash, and you like high end mods, with about everything you could ever think of, or want, you need to pick up one of these. Having just reviewed the SL Class v.2 I was already fairly refreshed on the Yihi chipset navigation and usage, and even with the somewhat more in depth nature of this one, it was actually very intuitive after a short time. I spent almost as much time, tweaking, adjusting, and customizing, as I did physically testing, and it's literally got EVERYTHING you would ever need. Now be advised, TC typically isn't my bag, as I prefer to "gas and go" in Wattage mode, but I think that the SXmini Team has really worked to make TC a lot easier, and much easier to use, right out of the gate, AND, if you WANT to dive in deeper, you can, but you don't NEED to.

For some people NOT having a 21700 battery option might be a con, but I had no issues with run time, and much like the SL Class v.2, it seemed to be more efficient than I expected. With less than 20 micro Amps in stand by, any vampire current bleed looks to be a thing of the past. Heavy, but not overbearing, and just felt REALLY good in the hand. Beyond the slight learning curve, and complex WIFI password issue, I couldn't find ANY issues, big OR small, to even mention, and I WAS looking. I'm glad I was able to test both the SL Class v.2, then this one, as it really allowed me to see the differences, and similarities first hand.

Again, a huge thanks out to @David_SXmini for sending this out for review.


Colors:

* Matte Black (reviewed)
* Space Gray

Linkage:


Almost Missed:

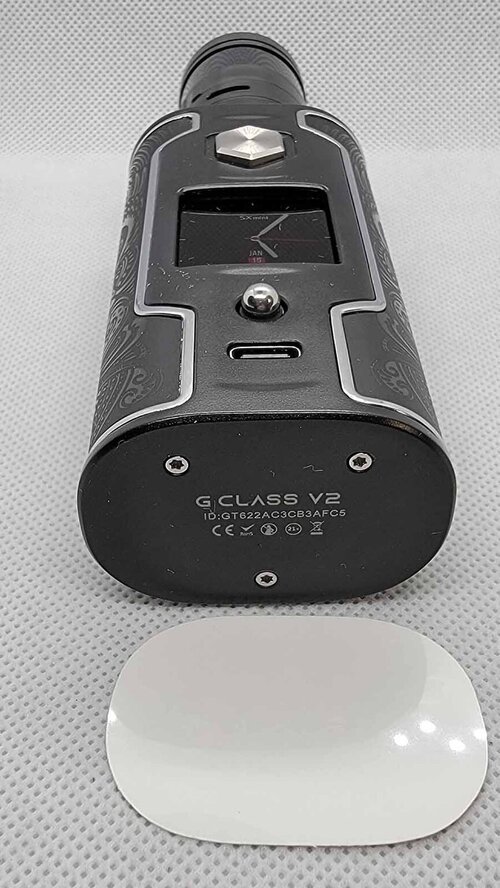

I almost missed this, as I didn't see this little sticker in the envelope until after the testing was done. The SXmini team tossed in a protective sticker, JUST IN CASE you were worried about scuffing up the bottom of your G Class v.2

52 Scratchguard.jpg

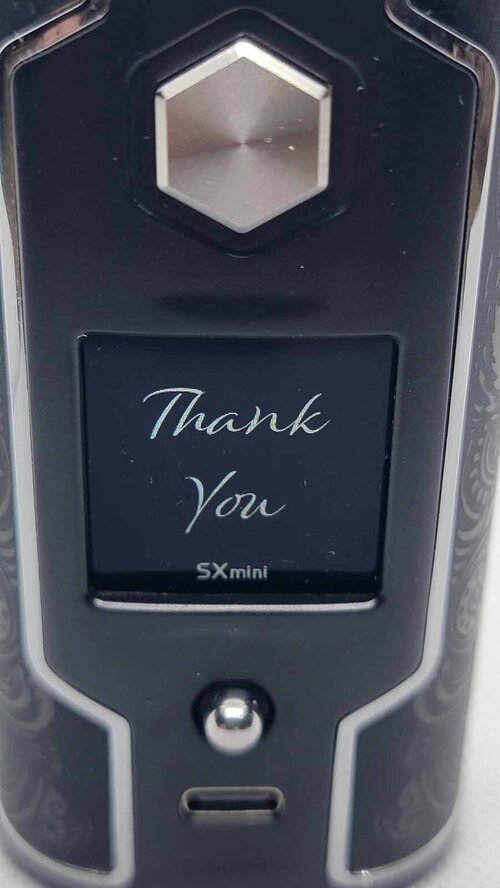

I know I always say this, but MAN, if you literally made it through this ENTIRE REVIEW, then you ARE one of the few. I could have probably gone on and added much, much more to this review, but as it is/was, it was very hard to cover ALL the features without turning it into a multi-sitting review. I appreciate you giving up some of YOUR free time, to check it out.

53 Thank You.jpg


S.D.

Bonus:




54 Wallpaper.jpg
55 SessionDrummer.jpg


TyTy

Chasing Flavour
LV
7

Joined
26/8/18
Posts
93
Awards
13
Age
28
Location
Boksburg
nice in depth review, mod is an absolute beast and love how elegant it looks :D


Shahiem

Noob Vaper
LV
16

Joined
28/3/16
Posts
2
Awards
7
Age
47
Location
Cape Town
Well i must have the 1st Faulty unit! Was promised a new unit, am still waiting almost 2 months later now....my unit does not read battery voltage nor ohms, Even took the new batteries and RTA of a working in use mod , nothing!


SessionDrummer

The SteamCrave Guy
LV
0

Joined
11/4/22
Posts
76
Awards
3
Location
US
Well i must have the 1st Faulty unit! Was promised a new unit, am still waiting almost 2 months later now....my unit does not read battery voltage nor ohms, Even took the new batteries and RTA of a working in use mod , nothing!
Well I'm sorry to hear that @Shahiem ...
