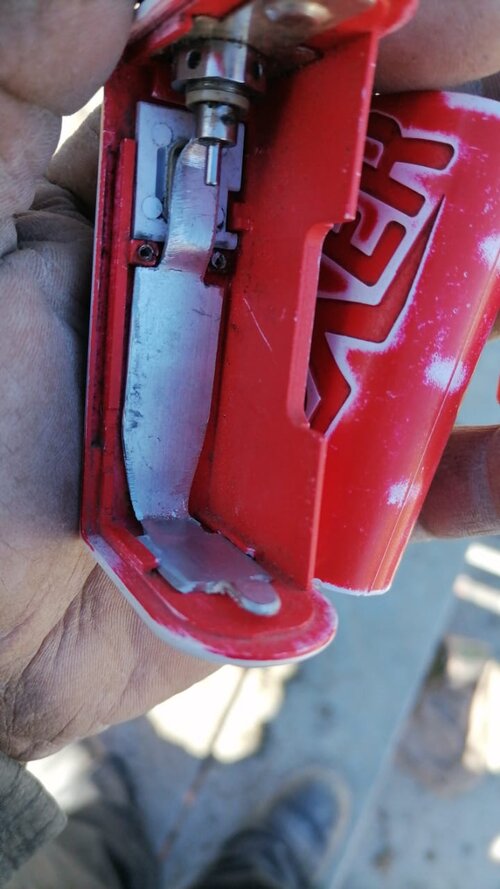

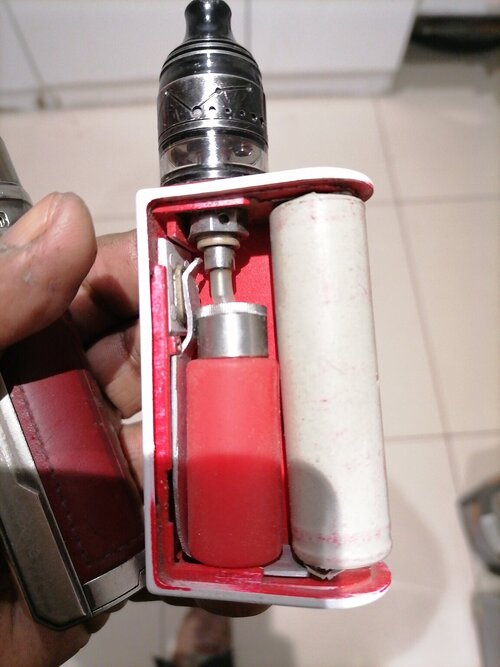

For the past week I have been struggling with the switch on the boxer. The contact plate kept on coming out of position. Well today during lunchtime I had enough IMG-20230720-WA0000.jpg
I fabricated a one piece aluminum contact in the interim. And hopefully by the weekend a proper fix and a thorough cleaning.


Silver

Flavour and throat hit seeker
Staff member
Administrator
ECIGSSA Donor
VIP
LV
44

Joined
16/11/13
Posts
43,439
Awards
49
Location
Joburg
How’s it holding up @Resistance ?
Good MacGuyver move!


Resistance

Vaping Royalty
LV
23

Joined
15/12/17
Posts
12,310
Awards
36
Location
Cape
How’s it holding up @Resistance ?
Good MacGuyver move!
HI @Silver. She's still going strong, but arching is an issue I have to polish the contacts about twice a day. 16906539828734537239714255213900.jpg

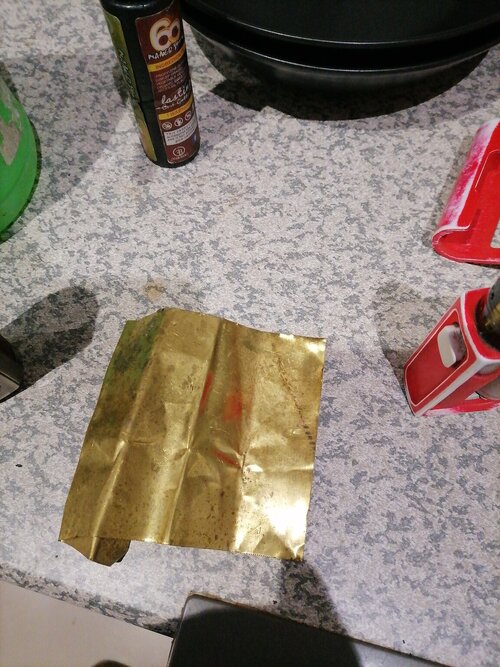

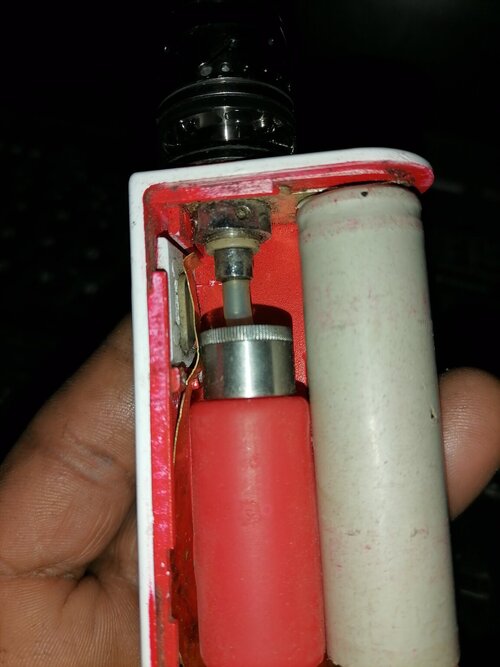

I've just cleaned out the pod on the Drag and I got this brass shim sheet I want to try next 1690654088929765120966234440392.jpg
But I think copper would do better.
I'll test the brass first with the hopes it does good enough


Intuthu Kagesi

Proficitis cum eo
LV
12

Joined
17/8/20
Posts
3,812
Awards
26
Location
Bedfordview
There's a quick and dirty method of getting rid of the arc ... The conditions required to initiate an arc depend on the voltage across the opening switch contacts, and the current at the time of opening. If you place a capacitor across the switch contacts, the capacitor acts like a short circuit when the contacts open and the capacitor charges, reducing the current flow through the switch to zero. The capacitor charges at the rate of using the formula t = RC, where R can be calculated from R = V/I, V being the voltage across the switch contacts and I being the current flowing at the time of the break, although there is an easier way / rule of thumb that says use 1uF per Amp of current flowing through the switch.
So if we assume that that's an MTL tank at say 1 Ohm, and your battery voltage is 3.7 Volts, then I = 3.7Amps, and a capacitor of 3.7uF rated at at least double the voltage is all that is required ... The closest value to that would be a 4.7uF capacitor at 52cents from Mantech. https://www.mantech.co.za/ProductInfo.aspx?Item=65M4920-H


Resistance

Vaping Royalty
LV
23

Joined
15/12/17
Posts
12,310
Awards
36
Location
Cape
There's a quick and dirty method of getting rid of the arc ... The conditions required to initiate an arc depend on the voltage across the opening switch contacts, and the current at the time of opening. If you place a capacitor across the switch contacts, the capacitor acts like a short circuit when the contacts open and the capacitor charges, reducing the current flow through the switch to zero. The capacitor charges at the rate of using the formula t = RC, where R can be calculated from R = V/I, V being the voltage across the switch contacts and I being the current flowing at the time of the break, although there is an easier way / rule of thumb that says use 1uF per Amp of current flowing through the switch.
So if we assume that that's an MTL tank at say 1 Ohm, and your battery voltage is 3.7 Volts, then I = 3.7Amps, and a capacitor of 3.7uF rated at at least double the voltage is all that is required ... The closest value to that would be a 4.7uF capacitor at 52cents from Mantech. https://www.mantech.co.za/ProductInfo.aspx?Item=65M4920-H
Brilliant thought.
And what do you think about replacing the aluminum with brass? Because Im sure copper is the better conductor between the three.


Resistance

Vaping Royalty
LV
23

Joined
15/12/17
Posts
12,310
Awards
36
Location
Cape
I've changed to the brass strip. Vaping is more consistent unlike the aluminum , but the brass strip is a bit on the thin side and light pressure makes it work. (unsafe if not in the hand)
I need to double it or something.
Sure I'll think of a way to make it better. Then a proper cleaning as because in thinking of a touch up job aswell.


Attachments

  • 16906706776556283850384312382404.jpg
    166.7 KB · Views: 11

Intuthu Kagesi

Proficitis cum eo
LV
12

Joined
17/8/20
Posts
3,812
Awards
26
Location
Bedfordview
I've changed to the brass strip. Vaping is more consistent unlike the aluminum , but the brass strip is a bit on the thin side and light pressure makes it work. (unsafe if not in the hand)
I need to double it or something.
Sure I'll think of a way to make it better. Then a proper cleaning as because in thinking of a touch up job aswell.
Sounds good! ... All things equal ... Phosphor Bronze would be your best bet, as it has better tensile strength, (translated to "spring" in this context). This would be followed by bronze, followed by brass, followed by annealed copper followed by copper, followed by aluminium, (although I would suggest something like Duralium vs. Aluminium if you were to go for lower mass and retain tensile stress and conductivity).


Last edited:

Resistance

Vaping Royalty
LV
23

Joined
15/12/17
Posts
12,310
Awards
36
Location
Cape
Sounds good! ... All things equal ... Phosphor Bronze would be your best bet, as it has better tensile strength, (translated to "spring" in this context). This would be followed by bronze, followed by brass, followed by annealed copper followed by copper, followed by aluminium, (although I would suggest something like Duralium vs. Aluminium if you were to go for lower mass and retain tensile stress and conductivity).

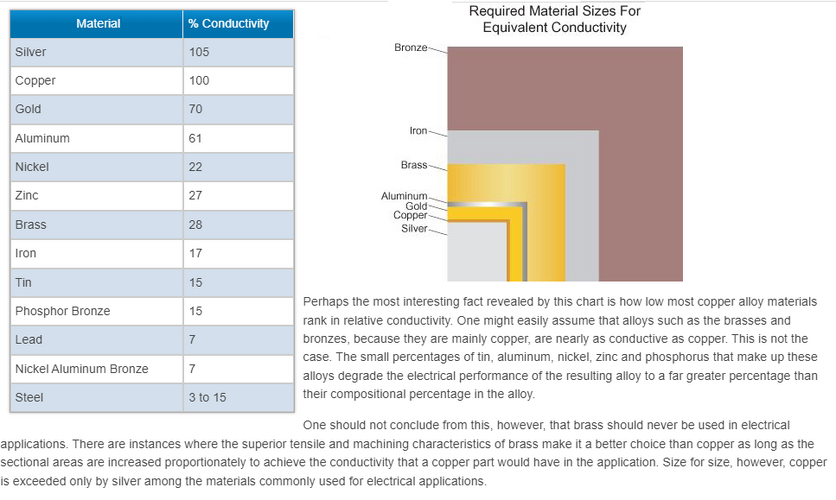

View attachment 275871
Well noted. The only issue I have is the tensile strength. Other than that it still performs well. Great for that matter with regards to what the table above explains. Then again this brass sheet is used as an electrical shim material so I don't know the exact composition, but it was made for electrical applications.
