100% will do. My gut tells me it will excel... but will let you know when I get one built!
Haywire Flatwire
- Thread starter Rob Fisher
- Start date
100% will do. My gut tells me it will excel... but will let you know when I get one built!

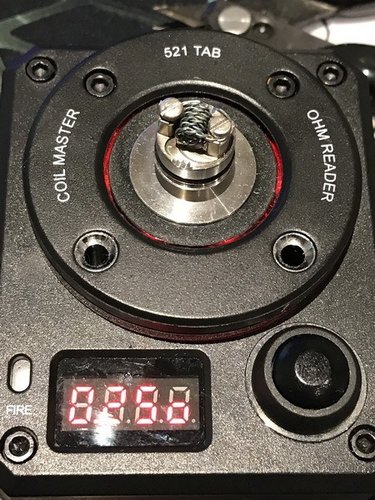

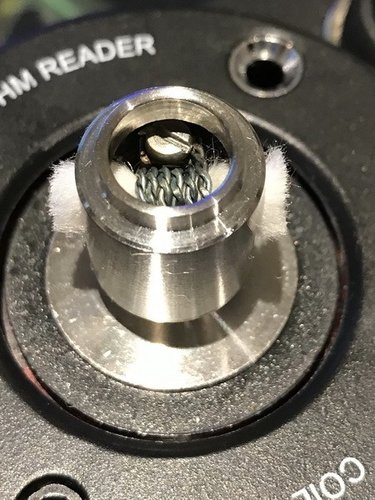

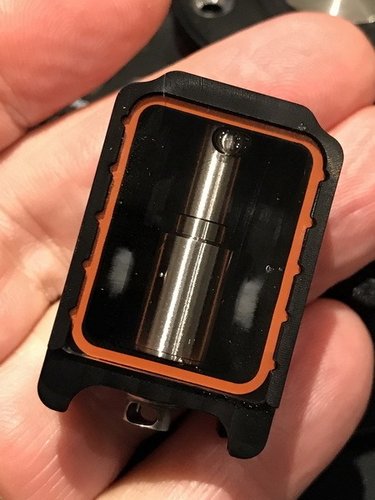

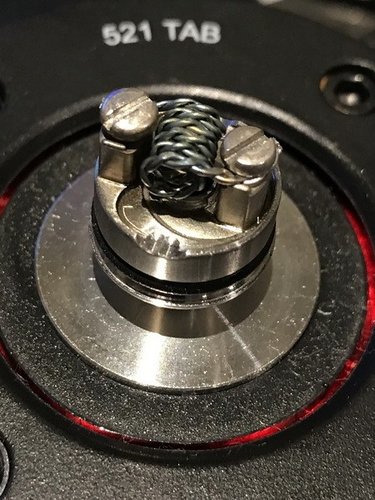

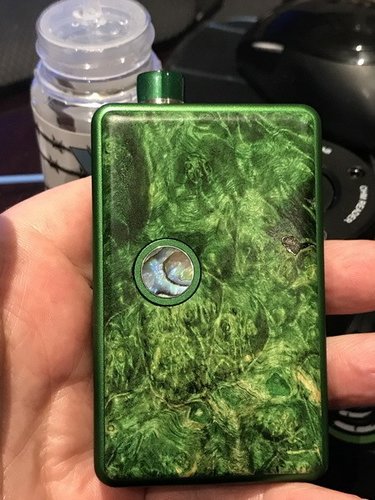

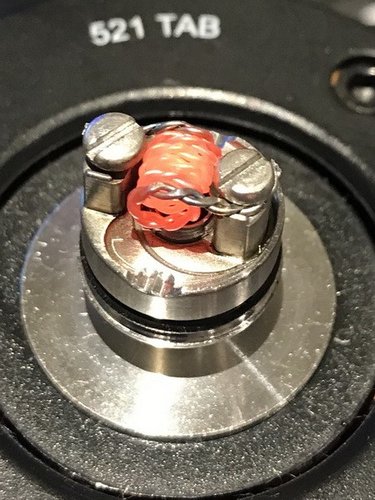

It's time to do another test of the Haywire Twisted wire... as I use my Billet Box's most of the time I decided to build a Haywire Twisted coil for the Exocet. The coil came out at 0.26Ω which is about half what I normally build for the exocet... I'm firing it at 28 watts which is around the same power I normally use. Initial indications are the flavour is excellent!
And no spitting Rob? Almost all twisted builds I tried gave me spitback.
The duals I built in an RDA did spit and was worried about that in the exocet but funnily enough it doesn't spit and maybe that's the exocet in a boro. It's pretty spectacular in the BB!
Some advise required, how would one pre calculate the ohms on flat wire using online calculators
Don't want to waste precious wire
Don't want to waste precious wire

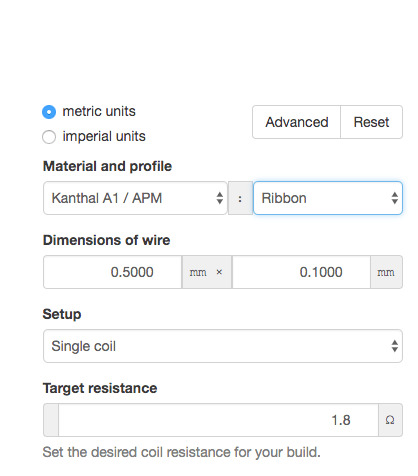

You can choose ribbon on Steam Engine. The dimensions need to be entered and not the gauge. There is a conversion table online somewhere. I will try and find it.
Sent from my Nexus 6P using Tapatalk
Here is the table I found:
https://www.fasttech.com/forums/vapers/t/1326338/size-conversion-chart-for-round-flat-and-ribbon/1
In steam engine choose ribbon as the wire type and enter the thickness x width as per the table.
I extrapolated from this table and assumed the thickness goes up by 0.1mm at gauge goes down. So:
28 - 0.8mm x 0.1mm
26 - 1.0mm x 0.1mm
24 - 1.2mm x 0.1mm
22 - 1.4mm x 0.1mm
20 - 1.6mm x 0.1mm
I've tested builds using FlatWire 22 and 20 gauge with those values and the steam engine calculator at two mods seem to read what steam engine said they should give or take 0.03 ohms.
https://www.fasttech.com/forums/vapers/t/1326338/size-conversion-chart-for-round-flat-and-ribbon/1
In steam engine choose ribbon as the wire type and enter the thickness x width as per the table.
I extrapolated from this table and assumed the thickness goes up by 0.1mm at gauge goes down. So:
28 - 0.8mm x 0.1mm
26 - 1.0mm x 0.1mm
24 - 1.2mm x 0.1mm
22 - 1.4mm x 0.1mm
20 - 1.6mm x 0.1mm
I've tested builds using FlatWire 22 and 20 gauge with those values and the steam engine calculator at two mods seem to read what steam engine said they should give or take 0.03 ohms.
No problem.
Agreed. It has a lot of surface area and therefore it performs really well.
