Homemade Coil Jig
- Thread starter Alex
- Start date
looks heavy as all heck
Lol cvs does this eyes closed
Here is a picture of my coil Jig!

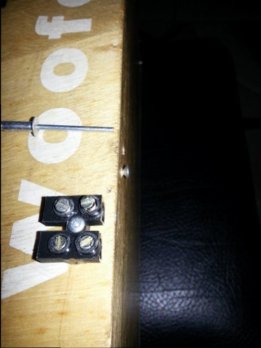

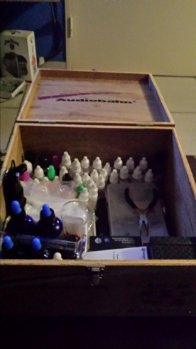

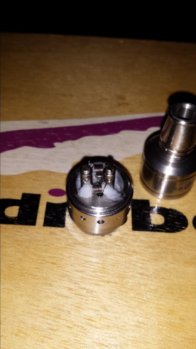

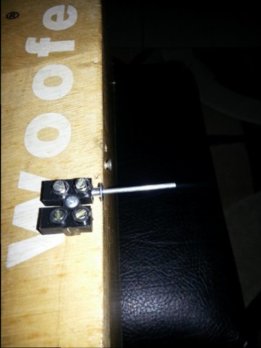

so after trying to decide on ho to make my own coil jig, I found the perfect tool for me, just a normal wire joiner which has 2 screws to hold my metal pin for my coils and its been working quite nice and only cost me a few rands to build. I decided to use a wooden box which my previous sub woofers came in and also mounted an old air flow control from a pro-tank, onto the lid of the box, so I can wind my coils on the jig on the side and then mount the coils in the atty on the lid of the box. Nice small and hassle-free work space
Attachments
i am going to the hardware store this weekend to find a neater fix for my clamps, something a bit more sturdy. While the plastic lug works, a metal 1 would be even better to mount and will also look better. Not sure why the forum uploaded 2 of each pic, because I only had 4 pics to upload
forgot to mention I am planning on getting an old ohm meter that I can dismantle and mount on the lid of the box so that I have a nice small workstation. Planning on sinking the small lcd screen to fit flush on the top lid and drill the 510 connector, to replace the current 510 connector that I already have mounted.
