Lemo 2 not working
- Thread starter Rafique
- Start date
have you tried removing the bottom base?
checked the deck to make sure there is no other shorts?
maybe also try prying at the center pin ever so slightly to pull it out a tiny bit
checked the deck to make sure there is no other shorts?
maybe also try prying at the center pin ever so slightly to pull it out a tiny bit
I got the bottom base loose, but the airflow rings has play up and down and for some reason. That shouldnt affect it well I dont think so.
the deck seems fine, I put another coil on now and there is no shorts.
let me try pulling the pin abit
the deck seems fine, I put another coil on now and there is no shorts.
let me try pulling the pin abit
Like @PeterHarris said, remove the bottom base and see if there is no issues within the atty,
Hope nothing is wrong and you are firing up that beast soon.
Hope nothing is wrong and you are firing up that beast soon.
yea - to remove the bottom base just turn the air fow ring counterclockwise, like you would for opening up the airflow, but just keep turning it, it will start to unskrew...
ok
seems ok to me

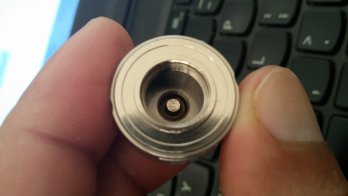

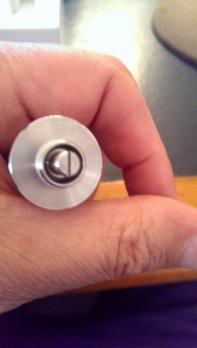

you need to try an pull that center pin a bit out on the outside of the bottom base, alternatively, you need to adjust the center screws on your mods, if they have that.
seems ok to me
you need to try an pull that center pin a bit out on the outside of the bottom base, alternatively, you need to adjust the center screws on your mods, if they have that.

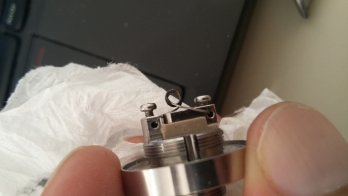

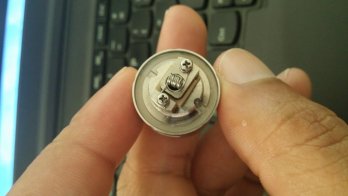

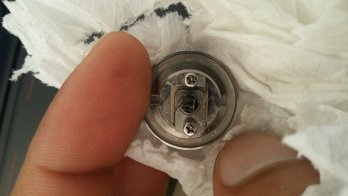

From the one pic of the coil it looks like both legs of the coil are touching the positive block. I might be wrong as it might be the angle of the pic.
I'll echo what @Dubz says, it looks like the coil leg is touching the deck - try lift the coil a bit (making sure neither of the legs touch the deck).
Additionally, what sometimes causes the Lemo to short is the airflow pin which attaches the top part of the deck to the bottom part. Unscrew that and check that the plastic insulator inside is in place properly. Just be careful when doing this as the top part of the deck will be loose, make sure not to lose anything in the process
Additionally, what sometimes causes the Lemo to short is the airflow pin which attaches the top part of the deck to the bottom part. Unscrew that and check that the plastic insulator inside is in place properly. Just be careful when doing this as the top part of the deck will be loose, make sure not to lose anything in the process
try pulling or pushing the centerpin in the base - seems there could be a problem there...or this... im not quite sure what he means...
Just an FYI, if anyone is having issues with the lemo2 not making a connection because of the 2 piece base (center pin not making connection with the 510), an easy solution is to take a 3mm inner diameter x 1mm cross section oring, and slide the center pin through it so that the oring now sits between the plastic insulator and the base of the center pin. Tighten the center pin down and it should work fine.
Just an FYI, if anyone is having issues with the lemo2 not making a connection because of the 2 piece base (center pin not making connection with the 510), an easy solution is to take a 3mm inner diameter x 1mm cross section oring, and slide the center pin through it so that the oring now sits between the plastic insulator and the base of the center pin. Tighten the center pin down and it should work fine.
ahha

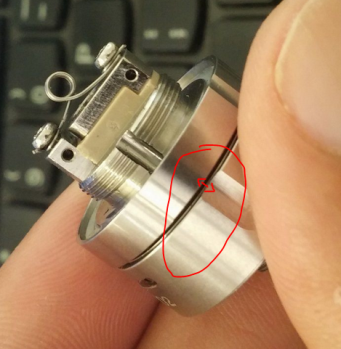

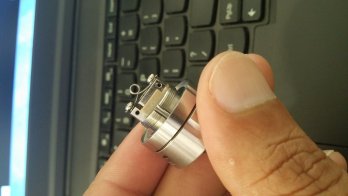

here - you need to get these two to sit flush - your centerpin is not making contact with your 510...
Just saw your updated build.
What device are you putting the Lemo on and have you tried any other tank on the same device? (Just a thought here...)
What device are you putting the Lemo on and have you tried any other tank on the same device? (Just a thought here...)
After seeing @PeterHarris pic above the problem seems like I said in my first post. The 2 pins are not making contact as the bottom base section is not screwed close enough to section above so they not making contact. Don't unscrew per my previous post. Get these together and see if it works.

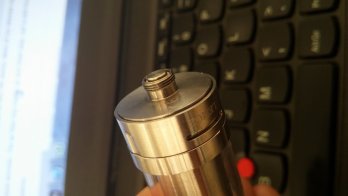

something is not leka with your bottom base, my air ring sits flush with the top and the bottom.
what if you try to compress it back together with some pliers, just use a cloth to protect the metal.

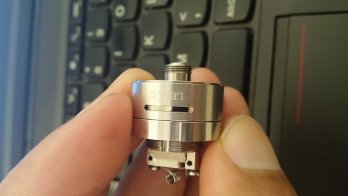

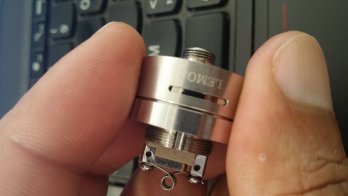

im trying to upload some pics for comparison....
The pics
