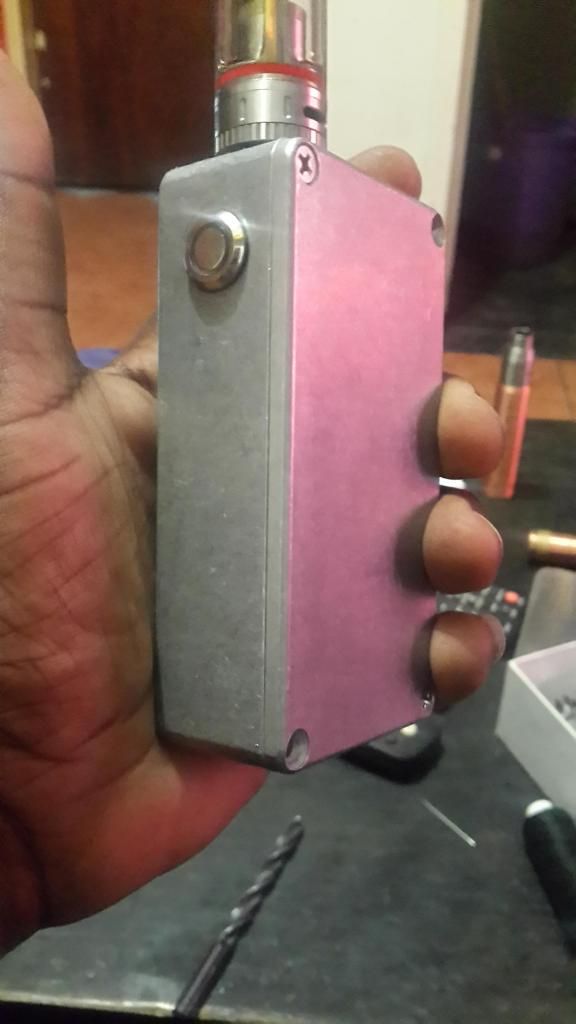

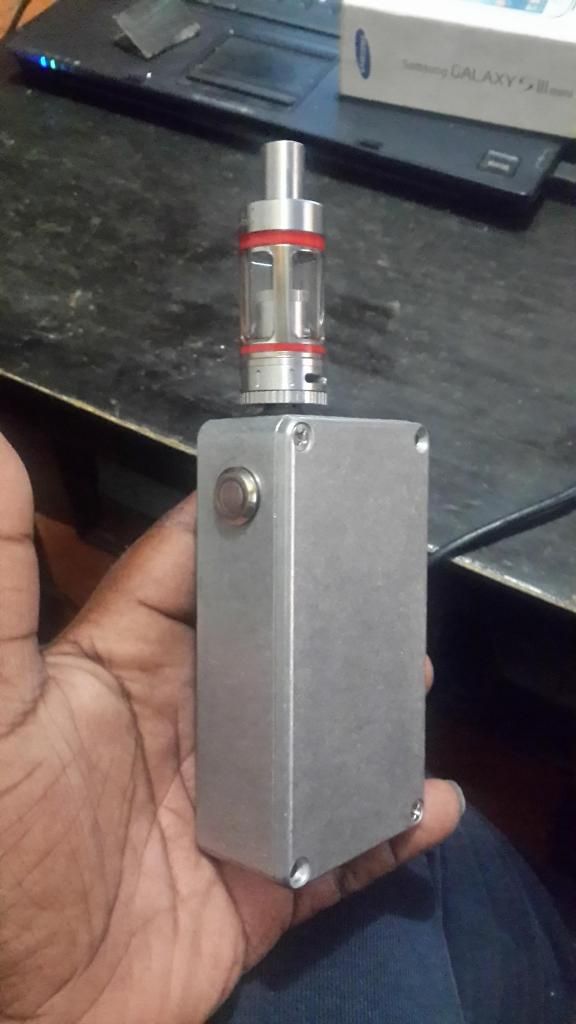

Hi guys, i have just finished building a dual 18650 box mod and it is good, it is not as neat as i would have wanted it, but for now it will do
And it still needs to be painted
And it still needs to be painted
DIY Box Mod
- Thread starter Keith Milton
- Start date
Hi, if i may ask were did u get ur parts like switch and batery holder and 510 topcap
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
Hi guys, i have just finished building a dual 18650 box mod and it is good, it is not as neat as i would have wanted it, but for now it will do
Great Job man! That one of the neatest ones i have seen built so far! Are you running a Mosfet in yours?
Looks good man! How does she vape?
Looks great man!!
Stunning.
I have to tell you man i have 2 of these at the moment
1 with Raptor board
1 with only mosfet
The 1 with the mosfet works like a charm also the only diff is it doesnt vape as good as my other and battery life but its still a very good vape!
Cool man,
Such a pitty but im sure you will get some soon hopefully! These box style devices are very cool to use and i love em!
Nice job dude... If I may ask, where did you procure the box that you built everything in?Hi guys, i have just finished building a dual 18650 box mod and it is good, it is not as neat as i would have wanted it, but for now it will do
Specs for the box mod is as follows:
The box is a Hammonds 1590B box sourced from Communica
Push Button Momentory swith sourced from Communica
The 510 connector is one from a non functioning e-cig
It is also running with a IRLFZ44 Mosfet with a 15K ohm resistor source from Screen Vision
The Battery holder i had to build myself as i could not source a Keystone 1048 battery holder ( only uses Sony VTC4 Batteries)
Still need to source the 15a resettable fuses and connect a master on\off switch.
This mod is a work in progress, will change as time goes on.
The box is a Hammonds 1590B box sourced from Communica
Push Button Momentory swith sourced from Communica
The 510 connector is one from a non functioning e-cig
It is also running with a IRLFZ44 Mosfet with a 15K ohm resistor source from Screen Vision
The Battery holder i had to build myself as i could not source a Keystone 1048 battery holder ( only uses Sony VTC4 Batteries)
Still need to source the 15a resettable fuses and connect a master on\off switch.
This mod is a work in progress, will change as time goes on.
Yes Paulie. I am using a IRFZ44 Mosfet with 15k ohm resistor
Thanks for all the information on it! You definitely on the right path! Looking forward to see what you have planned for the future!!
I tried to get the IRLB3034 mosfet and no one had them in stock. the only one that was even remotely availible was the IRFZ44
I did enquire from them and they said they had no stock at the moment, that was about two weeks ago.
Well, according to the site, they have stock. Just checked.
I'm going to try and build my own box mod and post a log on the forum. These pics got my tinkering brain cell jumping with joy!
