Tesla Invader 4X ... PCB Alternative

[SmokeyJoe]

I somehow don't buy that SmokeyJoe, as you have way more vaping experience than I do

What I can say about this modification is that outside of the obvious of bringing a dead mod back to life ... Should you have a mech, and want a little more flexibility and control whilst retaining that wonderful hard hit, then I'd highly recommend you look into building something like this into it

Bud, i vape, i dont work for NASA.



[Munro31]

The man is asking for a broken mod to work from. Break the mod and send it to him!

Break my Dotaio? Madness!!!



[Intuthu Kagesi]

Break my Dotaio? Madness!!!

Then send it on as is ... It's no problem ... I'll break it for you



[Munro31]

Then send it on as is ... It's no problem ... I'll break it for you



[MrGSmokeFree]

@Intuthu Kagesi you seem like the perfect guy for this. Can you build me one?



[Intuthu Kagesi]

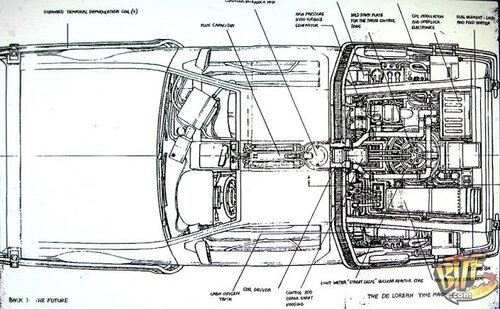

@Intuthu Kagesi you seem like the perfect guy for this. Can you build me one?View attachment 223905

Sure ... Can I send you my banking details



[Resistance]

@Intuthu Kagesi you seem like the perfect guy for this. Can you build me one?View attachment 223905

I can surely help colour in that pic.



[Intuthu Kagesi]

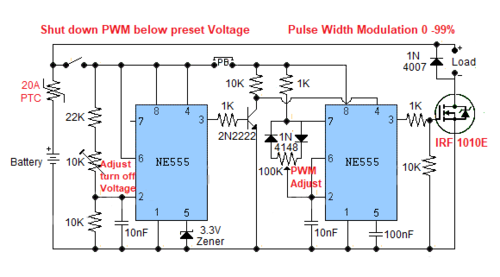

Herewith a revised / ver. 3 schematic ... Rather than toss a mod with a damaged PCB, build one of these

I've added a power down feature to prevent damage to cells by discharging them below a preset-able limit as well as a reset-able fuse / PTC.

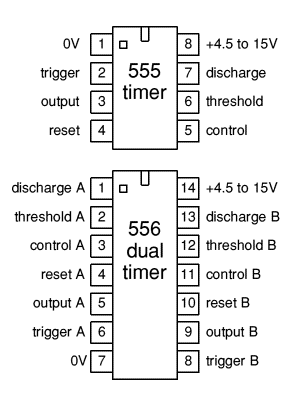

The diagram below shows two 555 timers, however I used a 556 Dual timer

This circuit could be used in a single cell mod, providing the zener diode is changed to from 3.3 to 2.1V and that a CMOS 556 or two CMOS 555's are used.



[Resistance]

Herewith a revised / ver. 3 schematic ... Rather than toss a mod with a damaged PCB, build one of these

I've added a power down feature to prevent damage to cells by discharging them below a preset-able limit as well as a reset-able fuse / PTC.

The diagram below shows two 555 timers, however I used a 556 Dual timer

This circuit could be used in a single cell mod, providing the zener diode is changed to from 3.3 to 2.1V and that a CMOS 556 or two CMOS 555's are used.

View attachment 239438
View attachment 239435

Sheer brilliance!



[Intuthu Kagesi]

Sheer brilliance!

Thanks Resistance ... It's more like 'necessity being the mother of all invention', with my combined Scottish and Jewish heritage wanting to sweat the asset for maximum returns whilst having fun resurrecting the dead



[Stranger]

whilst having fun resurrecting the dead

My wife does that when she goes to so called " Book club"



[Intuthu Kagesi]

My wife does that when she goes to so called " Book club"

Hmmmm ... Maybe said "Book club", is a code name, (not unlike your "classifieds friend"), for bonk club



[Grand Guru]

Herewith a revised / ver. 3 schematic ... Rather than toss a mod with a damaged PCB, build one of these

I've added a power down feature to prevent damage to cells by discharging them below a preset-able limit as well as a reset-able fuse / PTC.

The diagram below shows two 555 timers, however I used a 556 Dual timer

This circuit could be used in a single cell mod, providing the zener diode is changed to from 3.3 to 2.1V and that a CMOS 556 or two CMOS 555's are used.

View attachment 239438
View attachment 239435



[Stranger]

Anyway back your work, love it, one day I will send you a tube semi mech that somehow fires but does not put much power through compared to another of the same one.



[Intuthu Kagesi]

Anyway back your work, love it, one day I will send you a tube semi mech that somehow fires but does not put much power through compared to another of the same one.
View attachment 239473

It's an easy fix ... Replace the mosfet ... it's the only thing between your atty and the battery, else slap a dead cow on the braai and invite me over
