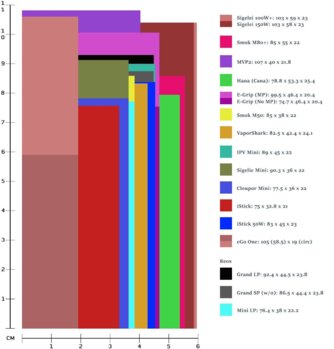

I created and posted this image in a couple of the new device threads and thought it might be good to have it in a thread of it's own.

So here it is...in a thread of it's own



Also, if there are any other devices anyone would like relative size comparisons for, simply comment here with their sizes and I'll throw an image together

Edits:
1) Added Reos
2) Added iStick 50W
3) Added eGo One (Bottom part = Battery / Top = Atty+Drip Tip)
4) Added axis with measurements in 1cm increments
5) Added Smok M80+, Sigelei 100W+, Sigelei 150W



[Yiannaki]

I created and posted this image in a couple of the new device threads and thought it might be good to have it in a thread of it's own.

So here it is...in a thread of it's own

View attachment 18180

Also, if there are any other devices anyone would like relative size comparisons for, simply comment here with their sizes and I'll throw an image together

View attachment 18181

I see you added the vapor shark to the list nice one!

A very useful image you've got there. I'm sure this will help many of the peeps. Myslef included



[Riaz]

Excellent comparison @free3dom


Sent from my iPhone using Tapatalk



[Silver]

Very useful image @free3dom
Thanks

Glad you put the MVP2 in there as most of us know it or have seen it before
Makes a lot of sense to compare new devices to something you know



[MurderDoll]

Reo grand.

Width: 44.5mm
Height: 92mm



[Marzuq]

Awesome thread @free3dom
This will serve members well when deciding what to get next based on sizes.



[free3dom]

Reo grand.

Width: 44.5mm
Height: 92mm

Great idea, I'm actually quite keen to see that for myself

Apologies to all the Reovillians (villians? ) for omitting your devices, an honest mistake

@MurderDoll I'm guessing that's the LP size (without the catch cup) because from the site I get the following sizes for the devices with the catch cup (converted from inches) - I couldn't find the LP sizes on the site...or maybe just overlooked them:

Reo Grand - 95.25 x 42.86 x 23.81 (with catch cup)
Reo Mini - 79.38 x 41.28 x 22.23 (with catch cup)

Also the width from the site is slightly smaller?

Can someone confirm and/or give me exact specs please (SP/LP, Grand+Mini), so I can add them properly?



[MurderDoll]

Great idea, I'm actually quite keen to see that for myself

Apologies to all the Reovillians (villians? ) for omitting your devices, an honest mistake

@MurderDoll I'm guessing that's the LP size (without the catch cup) because from the site I get the following sizes for the devices with the catch cup (converted from inches) - I couldn't find the LP sizes on the site...or maybe just overlooked them:

Reo Grand - 95.25 x 42.86 x 23.81 (with catch cup)
Reo Mini - 79.38 x 41.28 x 22.23 (with catch cup)

Also the width from the site is slightly smaller?

Can someone confirm and/or give me exact specs please (SP/LP, Grand+Mini), so I can add them properly?

Yeah.

Sorry about that. That's the measurements I got on my Reo grand LP.

I used my vernier for those measurements.

Thickness might be more due to the paint on it.



[free3dom]

Yeah.

Sorry about that. That's the measurements I got on my Reo grand LP.

I used my vernier for those measurements.

Awesome, will use your specs for the Reo Grand LP

Now I just need the size of the Reo Mini LP - and the SP versions of Grand+Mini if someone wants to "measure" them instead of having me go off the specs from the site?



[johan]

Standard Reo Grand dimensions (measured with vernier):

Without catch cup: (H) 86.85mm x (W) 44.40mm
With catch cup: (H) 94.40mm x (W) 44.40mm



[Andre]

Great idea, I'm actually quite keen to see that for myself

Apologies to all the Reovillians (villians? ) for omitting your devices, an honest mistake

@MurderDoll I'm guessing that's the LP size (without the catch cup) because from the site I get the following sizes for the devices with the catch cup (converted from inches) - I couldn't find the LP sizes on the site...or maybe just overlooked them:

Reo Grand - 95.25 x 42.86 x 23.81 (with catch cup)
Reo Mini - 79.38 x 41.28 x 22.23 (with catch cup)

Also the width from the site is slightly smaller?

Can someone confirm and/or give me exact specs please (SP/LP, Grand+Mini), so I can add them properly?

Those are for the standard profile Reos. Think you only need to list the low profile (LP). Just subtract 3 mm from the length of each.
The width of the Mini is not correct (saw they made a mistake on the ECF Reosmods forum). I do not have a vernier, but with my ruler it is 38 mm.



[free3dom]

Thanks for all the info @MurderDoll @johan @Andre

I've added the initial 3 reos: Grand LP+SP (without catch cup) and Mini LP.

Still need the Mini SP size (if someone want's it included)



[Andre]

Thanks for all the info @MurderDoll @johan @Andre

I've added the initial 3 reos: Grand LP+SP (without catch cup) and Mini LP.

Still need the Mini SP size (if someone want's it included)

Thanks, the catch cup is an integral part of a Reo, I would not include a size without same. Frankly, do not think it is required to include an SP - all nowadays buy LP.
Thank you for all the trouble - this is extremely useful.



[Marzuq]

@free3dom would it be possible to arrange this in ascending size. OCD going crazy looking at this lol



[free3dom]

@free3dom would it be possible to arrange this in ascending size. OCD going crazy looking at this lol

I would, but this is the only way all devices would be visible.. I think I'll rather do one using outlines



[Marzuq]

I would but this is the only way all devices would be visible.. I thi k I'll rather do one using outlines ☺

Nah bru nevermind me and my issues Lol. It's perfect as is



[Ollie]

Handy little comparison pic @free3dom

Shot bro!



[KB_314]

Hi @free3dom - would you mind adding the new istick (50w)?



[free3dom]

Hi @free3dom - would you mind adding the new istick (50w)?

iStick 50W added



[Arthster]

Very useful thread this. Thanks @free3dom



[KB_314]

Hi @free3dom - how about the new ego ones (in front of the stick?)... can't tell you how often I refer to this!



[free3dom]

Hi @free3dom - how about the new ego ones (in front of the stick?)... can't tell you how often I refer to this!

Great recommendation, eGo One added

I'm happy it's useful



[shaunnadan]

So I open this image , zoom in with my phone and think, this mod is sooooo small. Until I realized that it's relative to the size of a known mod, silly me

Good stuff buddy. Perhaps include a scale so that if you don't have a mod to compare to you can work on that



[free3dom]

So I open this image , zoom in with my phone and think, this mod is sooooo small. Until I realized that it's relative to the size of a known mod, silly me

Good stuff buddy. Perhaps include a scale so that if you don't have a mod to compare to you can work on that

Hahaha, yeah...that's the problem with pixels - they change their physical size the sneaky little buggers

As for scale, the physical sizes are listed in the legend in millimeters
Unless you mean I should include some x/y axis with labels?



[shaunnadan]

An axis works.
