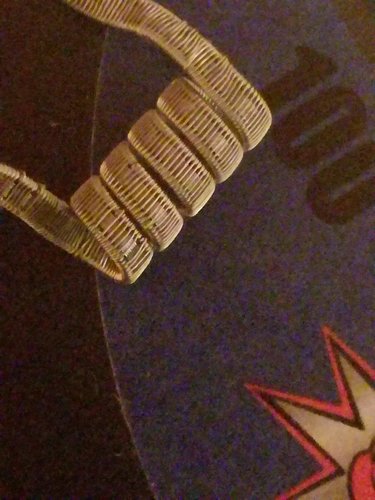

4 x 0.3mm kanthal ribbon stagerd with 36ga bordered with 28ga ni80 and 4x 0.3mm kanthal ribbon 2.5mm id 0.2 ohms
Dem builds
- Thread starter wiesbang
- Start date

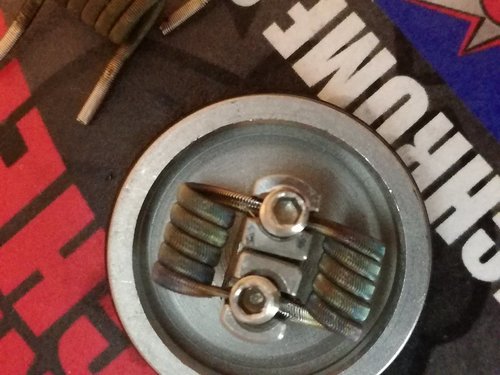

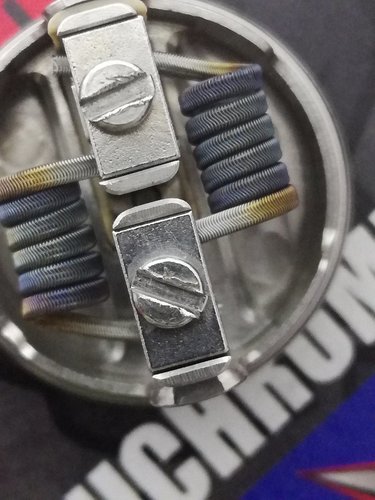

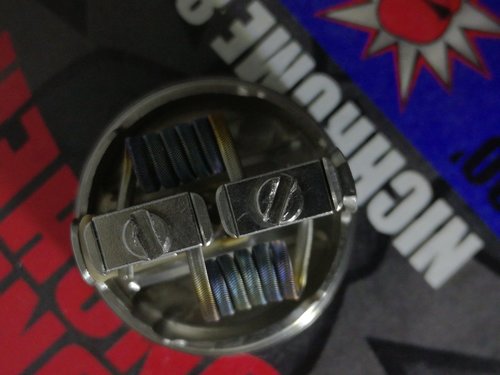

3 x 28ga ni80 aliened with 36ga ni80 3mm 0.17 ohms
While it's going well:

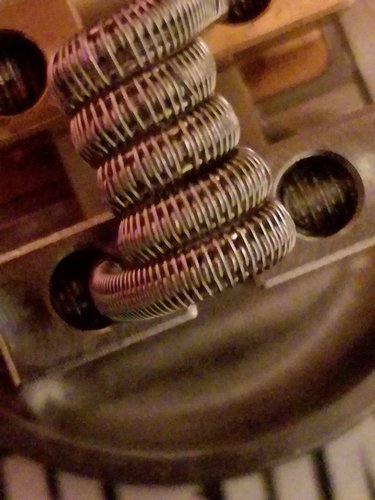

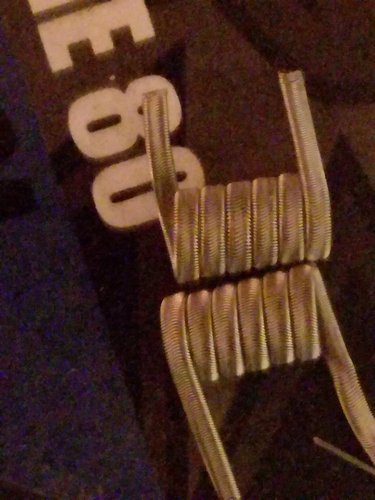

3x 28 aliened with 36ga 2.5mm 0.12 ohms
3x 28 aliened with 36ga 2.5mm 0.12 ohms
Awesome work to all the coilmakers that posted their work.

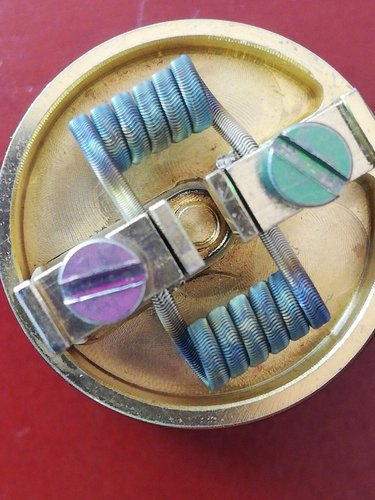

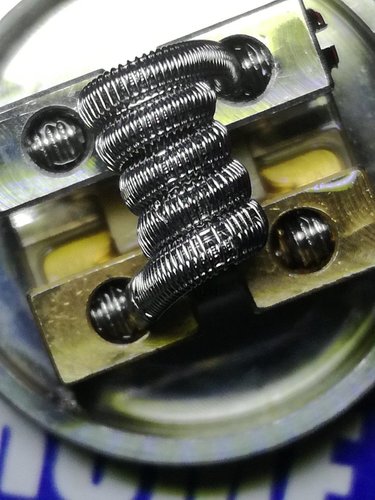

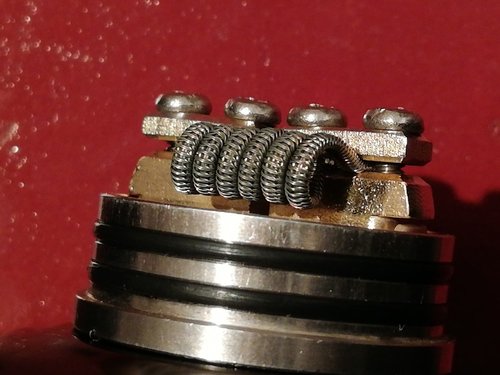

stapled staggered fused clapton. 2x28 stagger fused with 38 for frames and 6x.3 ribbon all fused together with 37g. All n80 kidney puncher
Amazing looking coil @Derek Van Zyl
Sweet baby frikkadel, those look fantastic!
@Derek Van Zyl, what's the ohms on that beauty?
Some builds I did over the holiday:

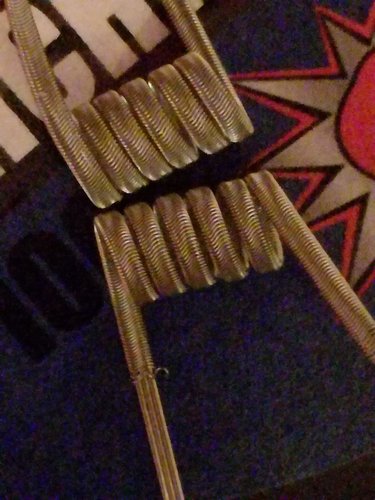

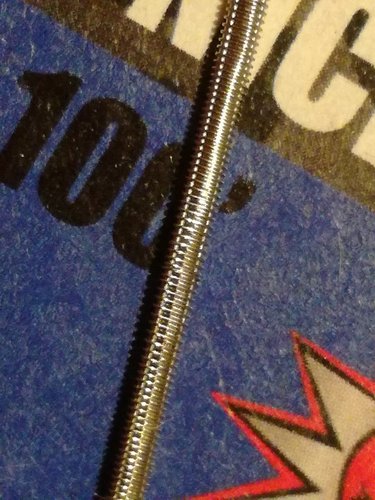

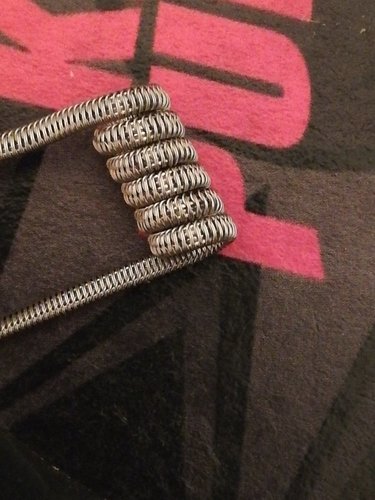

8 x 0.4mm ni80 ribbon stagerd with 36ga ni80 bordered with 28 ga. Still need something to mount this thing in.
8 x 0.4mm ni80 ribbon stagerd with 36ga ni80 bordered with 28 ga. Still need something to mount this thing in.
Also built a set of:

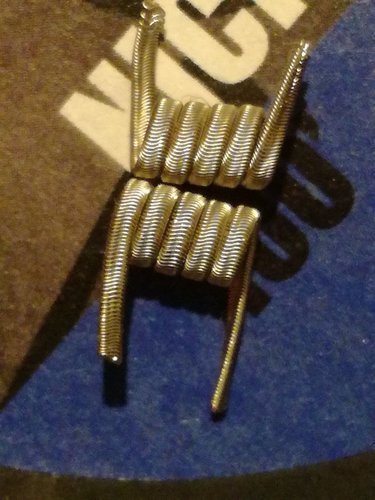

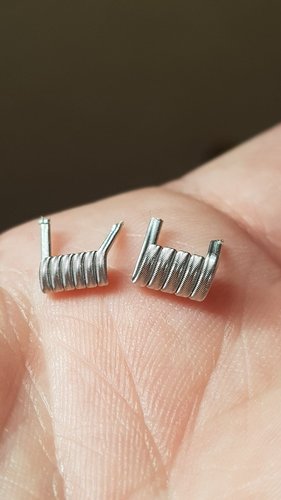

4 x 0.3mm ni80 bordered with 28ga ni80 aliened with 36ga ni80. Still need something to build them in.
4 x 0.3mm ni80 bordered with 28ga ni80 aliened with 36ga ni80. Still need something to build them in.
Is the mate me by chance?

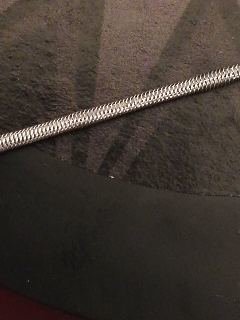

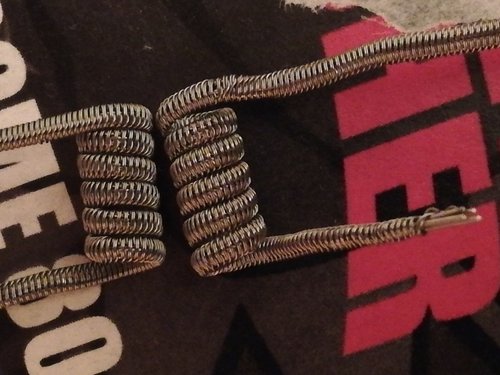

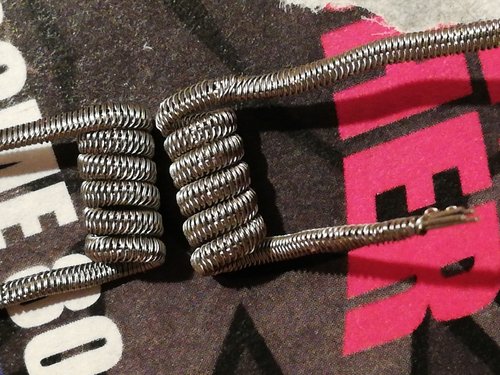

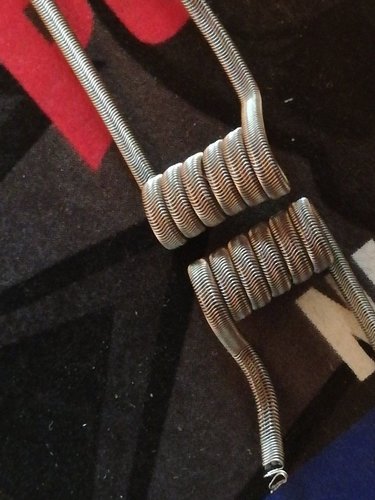

4 x 28ga ni80 stichstiched aliend with 2x38ga ni80 and 36ga ni80 2.5 mm need to build another before I can test.

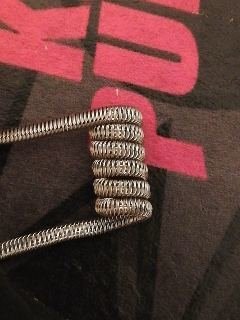

3 x 28ga ni80 stichstiched aliend 1 x 38ga ni80 aliend with 36ga ni80 2.5mm.

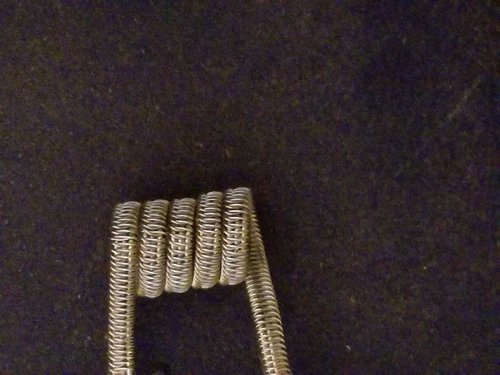

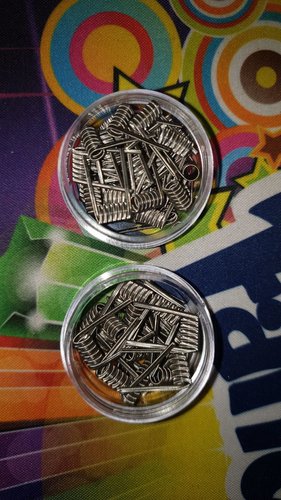

A set of 3 x 28ga ni80 aliend with 36ga ni80 2.5mm 0.19
Anybody got a list with all the different type of coils, google has a few that has 4 or 5 but not one thats shows all the coils so a person could start to make them from one point and work it through.
Would be great to have a list like that. What I currently know is that there are basic tipes of builds and then variations on them for instance you get fused claptons, aliens, tsuka the outer wrap differs on each claptons normal round wire is used aliens you use a clapton that you decored tsuka you use flat wire as a clapton. Then variations like stagered claptons, stiched aliens, interlocking aliens, mohawk aliens, enigma aliens, razor backs, stiched mohawks, double triple stiched, banded tsuka, claptoned tsuka etc. The cores can be changed as well normal round wire or frames where there is a ribbon stack in the middle of two border wires eaven square wire can be used. Then other basic builds twisted where you twist two wires together then you can hybrid this into a tipe of stagered clapton think it's called a helix. Or parallel wrap them to make zipers. Or use claptoned wire then twist them and parallel wrap them. Braids and braiding around core wire and their variations. Not even mentioning ivey wire, rods, enigma, corrugated, half stacks, pitch forks and what ever else people dream up and do. Endless amount of builds out there.
Hi @Friep i found this
https://www.e-cigarette-forum.com/threads/coil-build-list-definitions.754681/
Maybe one should document every build as you go along becuase i am sure like ourselves there are many more people that would make good use of a list like this

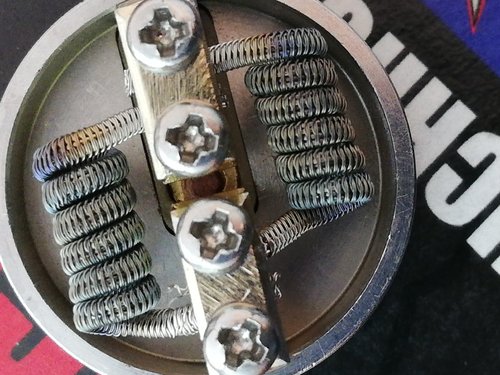

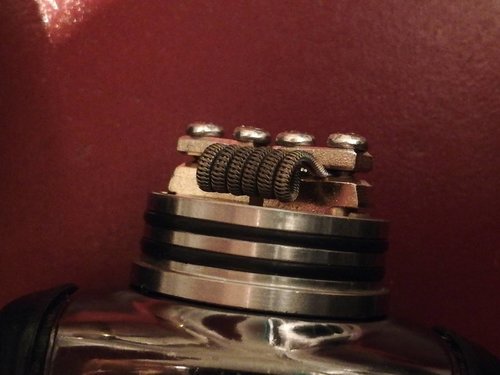

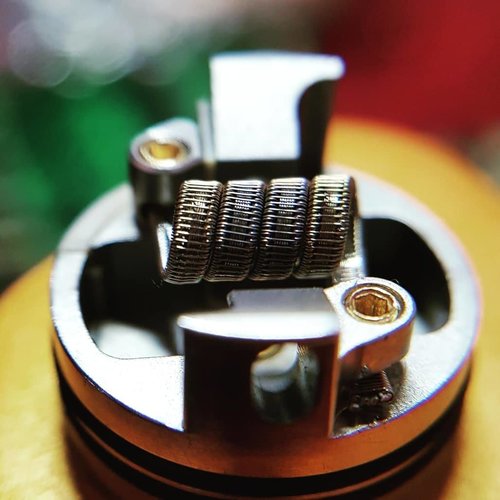

4 x 28ga ni80 stichstiched aliend with 2x38ga ni80 and 36ga ni80 2.5 mm 0.13ohms the vape is great:
