Daedalus Pro : Framed Staple Coil
Proud to say that i think i am the first guy or at least one of the few to do a tutorial on framed staple coils using the daedalus pro. Proudly South African.
That video was awesome too. Many Thanks.
KZOR's Reviews : Wotofo Coil Kit & Coil jig
That video was awesome too. Many Thanks.
Chicken dinner! Thanx for the upload @KZOR I found it very detailed and informative, Will be using this to when I attempt my own coils.Daedalus Pro : Framed Staple Coil
Proud to say that i think i am the first guy or at least one of the few to do a tutorial on framed staple coils using the daedalus pro. Proudly South African.
Just wow @KZOR ... now to get bulk ribbon and make these bad boysDaedalus Pro : Framed Staple Coil
Proud to say that i think i am the first guy or at least one of the few to do a tutorial on framed staple coils using the daedalus pro. Proudly South African.
Thanks for the easy tutorial mate
great video. that little 24g in the end genius.Daedalus Pro : Framed Staple Coil
Proud to say that i think i am the first guy or at least one of the few to do a tutorial on framed staple coils using the daedalus pro. Proudly South African.
how do you straighten the flat wire? tried straighting of the spool but never comes out straight.
thanks
Thank you Kzor! My v2 upgrade but still hasn't arrived but I followed your tutorial now and managed to make 2 beautiful Framed Staple coils.Daedalus Pro : Framed Staple Coil
Proud to say that i think i am the first guy or at least one of the few to do a tutorial on framed staple coils using the daedalus pro. Proudly South African.
I used 6 (3 doubled over) strands of 0.5mm Flat Ribbon Kanthal, Framed that with 26ga Ni80and Clapton with 34ga Ni80.
I did the Clapton over the frames the old fashioned way using just the Daedalus drill and spool in my hand.
Would this coil get the Kzor stamp of approval?
Sent from my SM-G570F using Tapatalk
Thank you Kzor! My v2 upgrade but still hasn't arrived but I followed your tutorial now and managed to make 2 beautiful Framed Staple coils.
I used 6 (3 doubled over) strands of 0.5mm Flat Ribbon Kanthal, Framed that with 26ga Ni80and Clapton with 34ga Ni80.
I did the Clapton over the frames the old fashioned way using just the Daedalus drill and spool in my hand.
Would this coil get the Kzor stamp of approval?
Sent from my SM-G570F using Tapatalk
- Joined
- 16/6/16
- Posts
- 3,513
- Awards
- 36
- Age
- 54
Hats off to you.
Grats m8. Looking forward to seeing more.
If you used 0.4 ribbons instead of 0.5 it would have a flatter look but still a very nice coil.
Tip ...... using smaller ga wires tend to increase flavour production so try the one i made and let me know what type of vape you get.
Thank you Sir. I only had the 0.5mm ribbon available at home so sadly that had to suffice. Your video had my creative juice pumped so I thought I'd give it a go anyway.
I'll pick up some 0.3mm ribbon this week and frame that with 28ga.
Hopefully the upgrade V2 kit is here too because I'll need the daedalus to Clapton the 38ga. My eyes fail me with wire thinner than 36ga
Sent from my SM-G570F using Tapatalk
I'll pick up some 0.3mm ribbon this week and frame that with 28ga.
Hopefully the upgrade V2 kit is here too because I'll need the daedalus to Clapton the 38ga. My eyes fail me with wire thinner than 36ga
Sent from my SM-G570F using Tapatalk
Last edited:
@KZOR - great video tutorials! You are a pro at this amd a pro at explaining things.
Please can you explain to me what the difference is between a fused clapton, staggered fused clapton and a framed staple? I cant see so well what the difference is
Also, what are the merits of these coil types and how do they change the vape for you?
Please can you explain to me what the difference is between a fused clapton, staggered fused clapton and a framed staple? I cant see so well what the difference is
Also, what are the merits of these coil types and how do they change the vape for you?
Where did u get the upgrade kit from @Greyz
We did a GB from 3fvape its $24.99 f0r the upgrade kit. If you have the original daedalus or a drill all you will need is the upgrade kit.
Sent from my SM-G570F using Tapatalk
- Joined
- 16/6/16
- Posts
- 3,513
- Awards
- 36
- Age
- 54
"Clapton" refers to a core wire/s being wrapped by a thinner one.
If you wrap (clapton) one wire it is called a simple clapton.
"Fused" refers to two or more wires being held together by wrapping wires. Here is a few examples of two wires "claptoned" with different ga wires.
"Staggered" refers to the way in which core wires are fused together. You have two claptoned wires with spaces between and then use the same ga wire that runs in those spaces to keep them together.
"Framed" refers to the usage of outside (bordering) core wires in a more complex build.
Last edited:
- Joined
- 16/6/16
- Posts
- 3,513
- Awards
- 36
- Age
- 54
The type and diameter of wires used not only influences flavour production but also durability, heat dispersion, ramp up time as well as ease of use as a building medium.
Alot has been said and posted about the differences between wire types.
I just love the frame staple because it gives me fantastic surface area for maximum flavour as well as a great combination of all the other qualities.
Kzor sorry to derail quickly but ur framed don’t they get too hot in ur mech single coil atties? On regulated wat watts do u push them at and wats their resistanceThe type and diameter of wires used not only influences flavour production but also durability, heat dispersion, ramp up time as well as ease of use as a building medium.
Alot has been said and posted about the differences between wire types.
I just love the frame staple because it gives me fantastic surface area for maximum flavour as well as a great combination of all the other qualities.
- Joined
- 16/6/16
- Posts
- 3,513
- Awards
- 36
- Age
- 54
Don't normally use them on mechs but i am using the DOVPO mech atm with the Hadaly and no heating of the atty.
Regulated i vape at 50W with a resistance in the area of 0.16ohms.
Brilliant thanks mate!

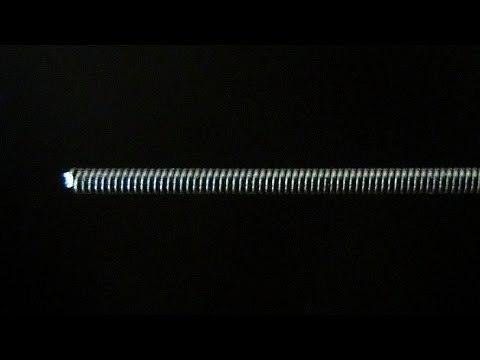

"Clapton" refers to a core wire/s being wrapped by a thinner one.
If you wrap (clapton) one wire it is called a simple clapton.
View attachment 116582

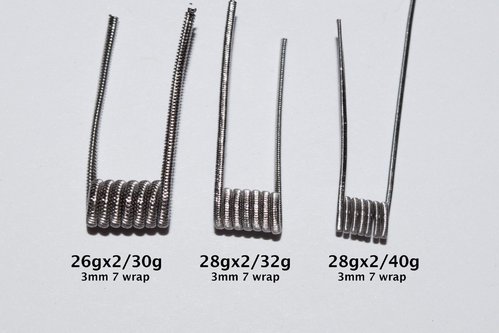

"Fused" refers to two or more wires being held together by wrapping wires. Here is a few examples of two wires "claptoned" with different ga wires.
View attachment 116583

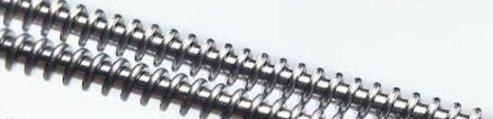

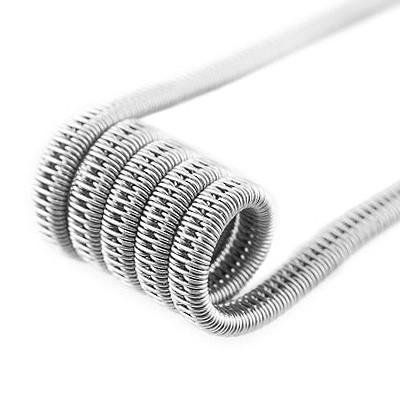

"Staggered" refers to the way in which core wires are fused together. You have two claptoned wires with spaces between and then use the same ga wire that runs in those spaces to keep them together.
View attachment 116587
View attachment 116586

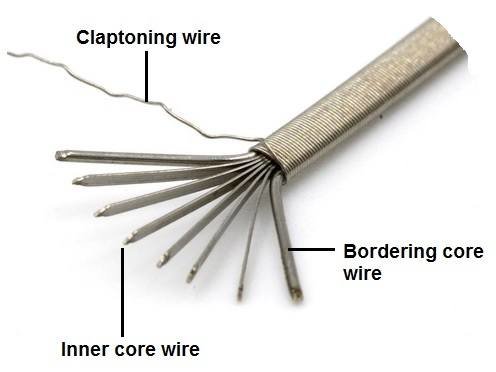

"Framed" refers to the usage of outside (bordering) core wires in a more complex build.
View attachment 116585
Thanks @KZOR
Very well explained.
I appreciate it
Simply gorgeous! 4 core framed kinda fused something or other@KZOR i hope you don't mind me posting here.
I had 5 minutes to play.
Daedalus pro makes this so very easy.

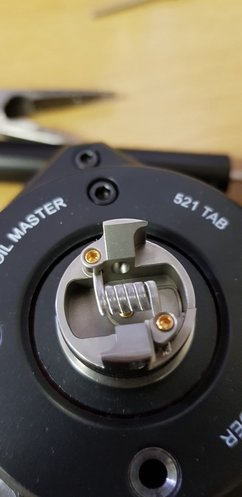

@Silver, initial build
@RayDeny have you tried more tension on your Clapton wire spool?

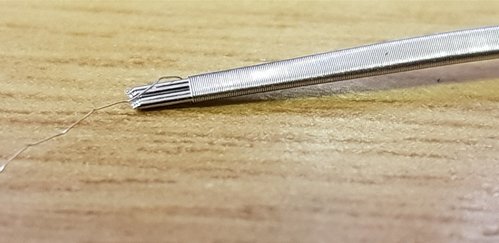

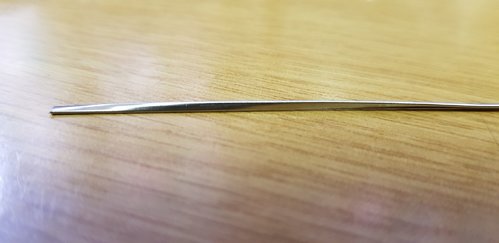

4x28 AWG inner claptoned with 40 AWG.
All ni 80.
3mm ID comes out at 0.34 ohms.
View attachment 116722 View attachment 116723 View attachment 116724 View attachment 116725
Just calling it a 4 core fused Clapton.
Nice ramp up with a nice warm vape for an airy atty.
Nice for a flav maybe
- Joined
- 16/6/16
- Posts
- 3,513
- Awards
- 36
- Age
- 54
Not at all m8.
Those coils look boss. You will deserve your coil medal in no time if you continue this way.
Great coils are all about tension and patience.
Planning a tutorial on Alien coils using the daedalus pro tomorrow morning.
This I can’t wait forNot at all m8.
Those coils look boss. You will deserve your coil medal in no time if you continue this way.
Great coils are all about tension and patience.
Planning a tutorial on Alien coils using the daedalus pro tomorrow morning.
