Show us your builds - Drippers (RDAs)
- Thread starter Hein510
- Start date
Last edited:
At last I can post in this thread

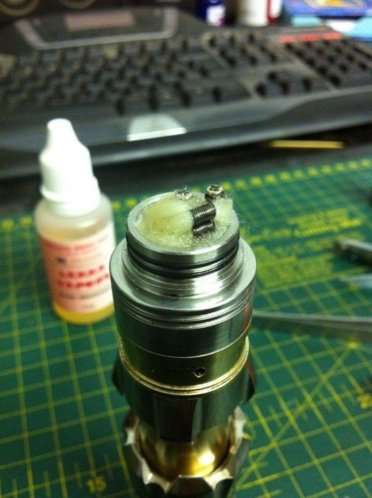

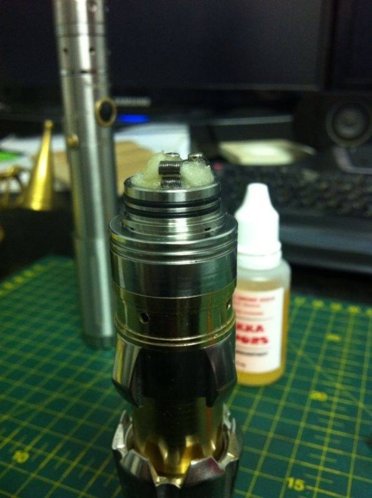

Built me my first sub ohm dual coil in my shiny new Igo-L. Nothing fancy just 28g Kanthal wrapped around a 2mm Allen key 11 times and stuffed with cotton. Cotton is easy, but after being spoiled with rayon I can confidently say that cotton sucks ass! Anyhow, it comes out to 0.8 ohm. I smothered it in Elvis' Breakfast at 12mg and fired it up on the Maraxus with a red efest v2 1600 18650. It's a good warm vape, tastes good so far but need to get past that icky cotton taste... also visibility in the room is down to about 10cm and I now have a headache. So I'll call this a winner
Built me my first sub ohm dual coil in my shiny new Igo-L. Nothing fancy just 28g Kanthal wrapped around a 2mm Allen key 11 times and stuffed with cotton. Cotton is easy, but after being spoiled with rayon I can confidently say that cotton sucks ass! Anyhow, it comes out to 0.8 ohm. I smothered it in Elvis' Breakfast at 12mg and fired it up on the Maraxus with a red efest v2 1600 18650. It's a good warm vape, tastes good so far but need to get past that icky cotton taste... also visibility in the room is down to about 10cm and I now have a headache. So I'll call this a winner
@BumbleBee i see you are loving your next step ;D so glad dude
If you dont like the cotton taste just throw some juice on there and instead of sucking, just blow for a toot or 2 and then take an inhale
If you dont like the cotton taste just throw some juice on there and instead of sucking, just blow for a toot or 2 and then take an inhale
At last I can post in this thread
Built me my first sub ohm dual coil in my shiny new Igo-L. Nothing fancy just 28g Kanthal wrapped around a 2mm Allen key 11 times and stuffed with cotton. Cotton is easy, but after being spoiled with rayon I can confidently say that cotton sucks ass! Anyhow, it comes out to 0.8 ohm. I smothered it in Elvis' Breakfast at 12mg and fired it up on the Maraxus with a red efest v2 1600 18650. It's a good warm vape, tastes good so far but need to get past that icky cotton taste... also visibility in the room is down to about 10cm and I now have a headache. So I'll call this a winner
View attachment 9514 View attachment 9515
Lovely neat parallel coil @BumbleBee !
Hope this is the right place to ask.
I built two twisted coils for the Magma, put them in my Hana, it registers at 1Ohm. Vapour production is high, but the taste is very muted. I've tried raising and lowering the coils height above the airflow holes but it doesn't really change anything.
The coils seem to be functioning properly. Is this just how the twisted coil produces flavour? Do I need to drop the Ohms?
All help and advice greatly appreciated.
For the record my lady, I put it to you that it's .30 gauge kenthal wrapped 12 times with a 2mm id.
I built two twisted coils for the Magma, put them in my Hana, it registers at 1Ohm. Vapour production is high, but the taste is very muted. I've tried raising and lowering the coils height above the airflow holes but it doesn't really change anything.
The coils seem to be functioning properly. Is this just how the twisted coil produces flavour? Do I need to drop the Ohms?
All help and advice greatly appreciated.
For the record my lady, I put it to you that it's .30 gauge kenthal wrapped 12 times with a 2mm id.
Well @NickT i love my twisted wire. Not a single rda i own has a single wire in. 2pair and 3 pair twisted. How on earth you get 1 ohm on 2 twisted wires i don't under stand. I struggle just to get anything above 0. 5 ohm. Flavour for me on the twisted wires seems better. But yeah, i think you are way to high. The twisted wires takes longer to heat up and that might be why you are having trouble. I would suggest droppin to 5 or so winds on a 2mm ID and then you should be at a point where i am. Now all this said.. What gauge wire are you using, how many winds? And what inner diameter size are you winding around.
sent via pigeon... please feed and return to sender
sent via pigeon... please feed and return to sender
Hey @ZortEd, sorry, I edited my post after I posted it.
"For the record my lady, I put it to you that it's .30 gauge kenthal wrapped 12 times with a 2mm id."
30gauge.. Ill take 4 wires. Wrap them and give that a try.. Maybe do 3 wire twisted. But 5 to 6 Wraps o have found works awsome. And i twist 26ga.
sent via pigeon... please feed and return to sender
sent via pigeon... please feed and return to sender
Grrrrrrrrrrr, going to rip it out and aim for .6 Ohm.
Thats the spirit...
sent via pigeon... please feed and return to sender
sent via pigeon... please feed and return to sender
sent via pigeon... please feed and return to sender
sent via pigeon... please feed and return to sender
Thats my Zenith V2 Tripple twisted 26 0.3 ohm flat..
sent via pigeon... please feed and return to sender
sent via pigeon... please feed and return to sender
I see the stupid pigeon dropped the same message twice... I'll have to starve him for a few days now!
sent via pigeon... please feed and return to sender
sent via pigeon... please feed and return to sender
Awesome coiling! Can understand why dual coils were not considered
sent via pigeon... please feed and return to sender
.
And what a great hobby, just takes your mind away. And you are clearly very good at it.....keep it up and post your creations for us to clumsy peeps to drool over.
sent via pigeon... please feed and return to sender
Agreed, @ZortEd seems to have this coil building thing pegged... I think he deserves something Shiny
Twisting the wire takes most of the time but when you twist a couple of meters at a time the building takes like a minute.. And for those who are interrested i heat and quench the twisted coils..kind of tempering them. They are rigid as hell but you can tug on them with cotton all day long and nothing will haapen to them. They just spring back.
sent via pigeon... please feed and return to sender
sent via pigeon... please feed and return to sender

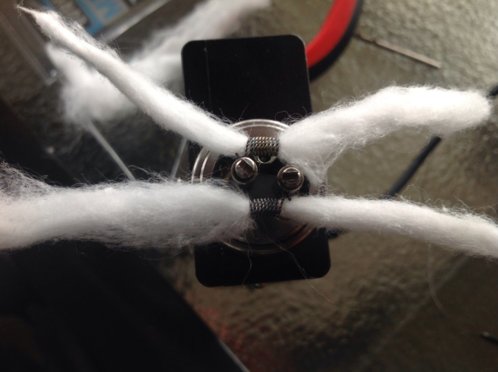

Ok, here's my new build. Tops out at .6-.7 Ohm. It's not terribly neat, but with the posts being so far apart, a smaller coil starts getting pulled apart.
Will update on whether it sucks or not.
Will update on whether it sucks or not.
